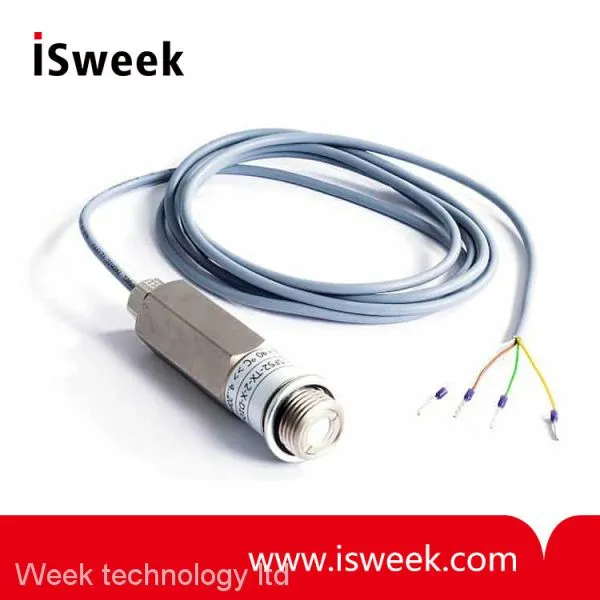

VPA.8000.1013 Dew Point Sensor Product Description
VPInstruments’ dew point sensors are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.
Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time. We offer various models which meet both moderate dry air (refrigerant dryer) and extreme dry air (dessicant dryer) applications.
VPA.8000.1013 Dew Point Sensor Features and benefits
For moderate dry air
3-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time
VPA.8000.1013 Dew Point Sensor Application
Moderate dry air (refrigerant dryer)
VPA.8000.1013 Dew Point Sensor Specifications
|
Performance | |
| Measurement range |
-40 ... +60°C | -40 ... 140 °F dew point |
| Accuracy (dew point) |
±2°C | ±3.6 °F dew point |
| Response time |
|
|
Electrical output/input | |
| Output signa |
4 ... 20mA (3-wire) |
| Supply voltage |
8-30VDC |
| Current consumption |
9mA + load current |
| Supply voltage influence |
±0.005 % RH/V |
|
operating conditions | |
| Operating humidity |
0 ... 95% RH (non-condensing) |
| Operating temperature |
-30 ... +70°C | -22 ... + 158 °F |
| Operating pressure |
20 barg maximum |
| Temperature coefficient |
±0.05 %/°C |
|
Mechanical specifications | |
| Ingress protection |
IP65 | NEMA 4 |
| Housing material |
Nickel-coated brass |
| Dimensions |
L=85mm, ø24mm (max) | 3,3 x 0,9" |
| Filter |
HDPE front filter |
| Process connection |
G1/2 (1/2" BSP) |
| Connection |
2 m | 6.5 Feet |
