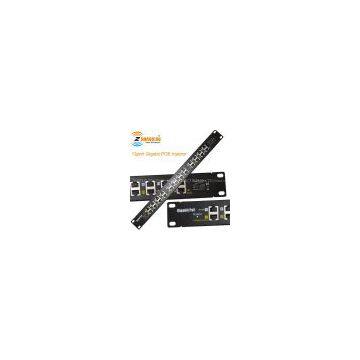

Help Center12port Gigabit Power Over Ethernet Poe Injector
Related Products
-
Passive Power Over Ethernet Poe Injector Splitter POE CableUS$ 1.2 - 1.2MOQ: 100 Pieces -
6port Gigabit Power Over Ethernet Poe InjectorUS$ 25 - 25MOQ: 10 Pieces
-
16 Port Passive Poe Injector Rack MountUS$ 25 - 25MOQ: 10 Pieces
-
4port Passive Power Over Ethernet Poe InjectorUS$ 4.5 - 4.5MOQ: 100 Pieces
-
8port Passive Power Over Ethernet Poe Injector PanelUS$ 7 - 7MOQ: 100 Pieces
FEATURES
USE 10/100/1000M Gigabit Ethernet;
Flexible power (DC 24V TO 57V);
Each Port Current Protection (650mA15%);
Built-in LED Indicator;
For 19’’ Rack
OVERVIEW
The 12 port gigabit PoE panel is used 10/100/1000M Ethernet, The upper Rj45 sockets is fo “LAN/Switch/PC ” 1/2&3/6&4/5&7/8 are transmitting data. The under RJ45 (power +data) socket is to deliver data and power:1/2&3/6&4/5&7/8 transmitting data,1/2(-)&3/6(+)for power. passive POE is composed of 12 set of Rj45 sockets and two 60V DC power jack. Input power requests120W or more AC TO DC power converter. The input dc hole diameter is 2.5mm and the other end OD id 5.5mm.
Each socket provides protection against short overflow (current protection 650mA+15%-15%). The sum total output power must be lower than the MAX input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is 10W per RJ45 set (1 set = 2 x RJ45sockets). For example, 12 x 10W = 120W for 12 port Passive PoE panel.
The configuration size of panel is 1U (height), 19” (width) and 52mm (thickness), as is available to answer market demand and convenient to be installed directly.
SPECIFICATIONS
Input 100-240V AC 50/60Hz
Output 48V 120W (Min)
Data 1/2&3/6&4/5&7/8
Power3/6&4/5+,1/2-&7/8- (48V)
Data In Connects PC/HUB/Switch
Weight 12 Port 1.2Kg
Dimensions 482.6mm×44.3mm×52mm
Case of material metal work material
Ethernet Cable TIA/EIA 568 Cat. 5
Data rate 10/100/1000Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certification CE
How To Order
ZQ-POE-12-GU Gigabit POE Panel 3/6+,1/2-
ZQ-POE-12-GUA Gigabit POE Panel 4/5+,7/8-
ZQ-POE-12-GUAB Gigabit POE Panel 3/6&4/5+,1/2-&7/8-
