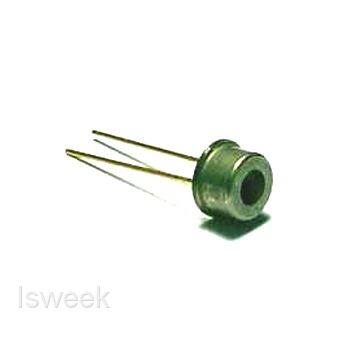

Help CenterGUVB-T11GD-L UV-B Sensor
US$ 13 - 18
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Genicom
Place of Origin:
South Korea
Model Number:
GUVB-T11GD-L
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
Brand Name
Genicom
Place of Origin
South Korea
Model Number
GUVB-T11GD-L
Usage
Other, UV Sensor
Theory
Optical Sensor
Output
Analog Sensor
1. UV Sensor GUVB-T11GD-L Features
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. UV Sensor GUVB-T11GD-L Applications
UV-B Lamp Monitoring
UV-B LED Monitoring
3. UV Sensor GUVB-T11GD-L Outline Diagrams and Dimensions
4. UV Sensor GUVB-T11GD-L Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.01µ~100m W/cm2
Soldering Temperature: 260℃
5. UV Sensor GUVB-T11GD-L Characteristics (at 25℃)
Dark Current(Max.): 20nA
Photo Current(Typ.): 1.5µA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.13A/W
Spectral Detection Range: 220~320nm
Active area: 1.536mm2
