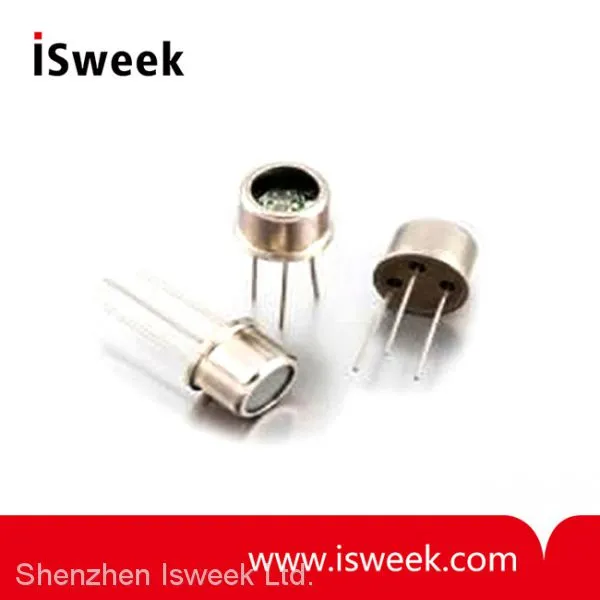

Help CenterGUVB-T21GH UV Sensor Module
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Genicom
Place of Origin:
South Korea
Model Number:
GUVB-T21GH
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
GUVC-T21GH UV Sensor ModuleNegotiableMOQ: 1 Piece -
SG01L-C5 UVC-only SiC Based UV Photodiode With Standard DVGW W294NegotiableMOQ: 1 Piece
-
SG01L-5LENS Concentrator Lens SiC Based UV PhotodiodeUS$ 0.01 - 0.1MOQ: 1 Piece
-
UV-Arc Waterproof UV Sensor for Pantograph Arc DetectionUS$ 0.001 - 0.01MOQ: 1 Piece
-
TOCON_B4 UVB+UVC Photodetector With Integrated AmplifierUS$ 0.001 - 0.01MOQ: 1 Piece
Brand Name
Genicom
Place of Origin
South Korea
Model Number
GUVB-T21GH
Usage
Other, UV Sensor
Theory
Optical Sensor
1. UV Sensor Module GUVB-T21GH Features
- Chip size 0.4mm, TO 5 PKG
- Single Supply Voltage Operation
- Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
2. UV Sensor Module GUVB-T21GH Applications
UV-B Lamp Monitoring
UV Index monitoring
3. UV Sensor Module GUVB-T21GH Outline Diagrams and Dimensions
4. UV Sensor Module GUVB-T21GH Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. UV Sensor Module GUVB-T21GH Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50 µA
Responsivity: 1.3 mV/nW
Spectral Detection Range: 220~320 nm
Output Voltage(1 mW/cm2): 0.93V
Detection Power Range: 0~5.38 mW/cm2
Rising Time: 3ms
