Product Details
Brand Name: | GSS | Place of Origin: | United Kingdom | Model Number: | SprintIR |
Usage: | Gas Sensor | Theory: | Other, NDIR Gas Sensor |
Product Description

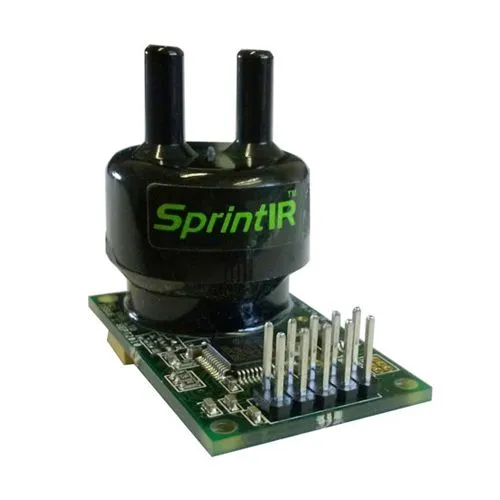

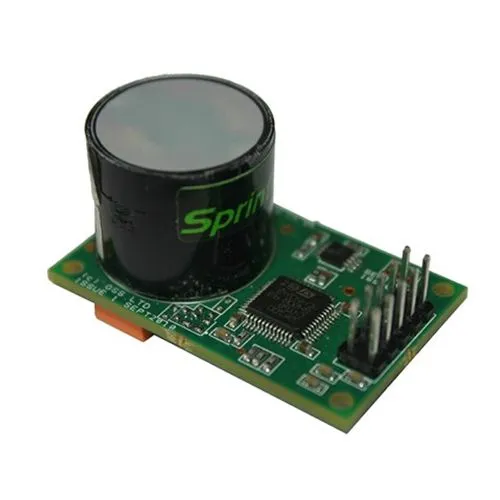

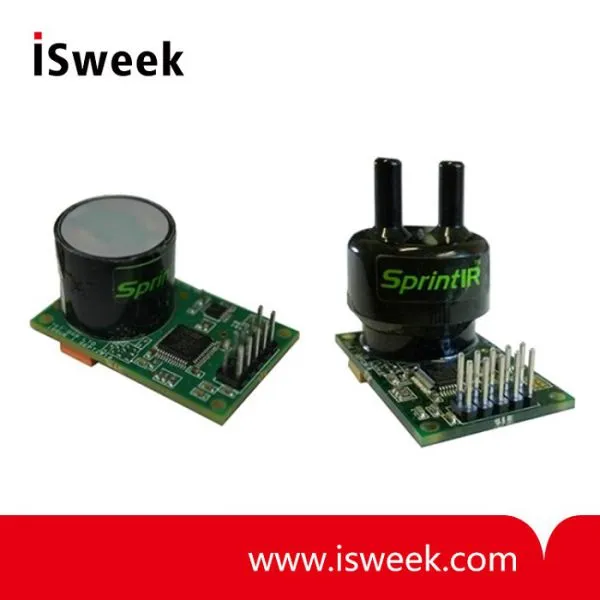

High Speed Carbon Dioxide Sensor NDIR CO2 Sensor SprintIR Summary
SprintIR is a high speed (20 Hz) CO2 sensor, ideally suited for applications which require capture of rapidly changing CO2 concentrations including metabolic assessment and analytical instrumentation.
Fast, Accurate Carbon Dioxide Sensor
The SprintIR carbon dioxide sensor is the fastest, most accurate CO2 sensor on the market. A breakthrough in NDIR technology, the SprintIR uses advanced solid state Indium Antimonide LED’s and detectors to offer a robust sensor with no moving parts, no heated filaments, and incredibly low power requirements. The sensor comes in four versions - from 0% to 100% - all capable of the same high-speed CO2 measurement. This makes the SprintIR especially useful in biological applications.
• High speed sensing (20Hz)
• Measurement ranges from 0 to 100%
• 3.3V supply
• Low power requirement 35mW
• Flow through adaptor (Optional)
High Speed Carbon Dioxide Sensor NDIR CO2 Sensor SprintIR Specifications
CO2 Measurement | |
Sensing Method | Non-dispersive infrared (NDIR) absorption Patented Gold-plated optics Patented Solid-state source and detector |
Sample Method | Diffusion(Standard) / Flow through (with flow-through adapter) |
Measurement Range | 0-5%, 0-20%, 0-60%, 0-100% |
Accuracy | ±70 ppm +/- 5% of reading |
Measurement Noise | <10% of reading with no digital filtering |
Non Linearity | <1% of FS |
Pressure Dependence | 0.1% of reading per mbar in normal atmospheric conditions |
Operating Pressure Range | 950 mbar to 10 bar |
General Performance | |
Warm-up Time | <1 minute |
Operating Conditions | 0°C to 50°C (Standard) -25°C to 55°C (Extended range) 0 to 95%, RH non-condensing |
Recommended Storage | -30°C to +70°C |
Electrical/ Mechanical | |
Power Input | 3.2 to 5V. (3.3V recommended) Peak current 100mA Average Current <15mA |
Power Consumption | 35 mW |
Output | UART only |
