Help CenterSK-25F Figaro Oxygen Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Figaro
Place of Origin:
Japan
Model Number:
SK-25F
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
OX-B431 Ozone Sensor + Nitrogen Dioxide Sensor (O3 Sensor + NO2 Sensor)US$ 80 - 100MOQ: 1 Piece -
3SP_O3_5 P 15x15 O3 Sensor 5 Ppm Pinned Package 110-407US$ 10 - 30MOQ: 1 Piece
-
3SP_NO2_5F C 15x15 NO2 Sensor 0-5 Ppm FC Package 110-508US$ 10 - 30MOQ: 1 Piece
-
FSM-A-003 Indoor Air Quality ModuleUS$ 30 - 80MOQ: 1 Piece
-
FAM-001-01 Air Quality Detection ModuleUS$ 30 - 80MOQ: 1 Piece
Brand Name
Figaro
Place of Origin
Japan
Model Number
SK-25F
Usage
Gas Sensor
-
SK-25F Oxygen Sensor Features:
* Virtually no influence from CO2, CO, H2S, NO, H2
* Temperature compensation circuit included
* Good linearity
* No position dependency
* Stable output signal
* No external power supply required for sensor operation
* No warmup time is required
-
SK-25F Oxygen Sensor Applications:
* Measurement - Oxygen monitors in flue gas
* Biotechnology - Oxygen incubators, anaerobic cultivators
* Food industry - Refrigeration, greenhouses

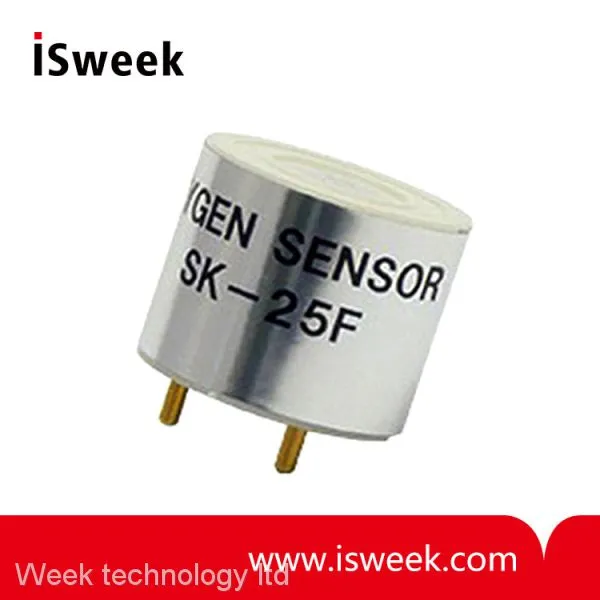

The Figaro Oxygen Sensor SK-25F is a unique galvanic cell type oxygen sensor. Its most notable features are no influence from CO2, good linearity up to 30% oxygen, and excellent chemical durability. This feature makes the sensor ideal for oxygen monitoring in various applications such as the biochemical field, food industry, and domestic safety applications.
-
SK-25F Oxygen Sensor Specification:
Accuracy: ±1% full scale
Operating conditions
Atmospheric pressure: 1013hPa ± 20%
Temperature: -10~50℃
Relative humidity: 0~99%RH (no condensation)
Response time (90%): ≤ 15 seconds
Initial output voltage under factory test conditions: 5.5~8.5mV
Fcatory test conditions
Atmospheric pressure: 1013hPa
Temperature: 25±5℃
Life expectancy at 20℃ in normal air: approx. 3 years
