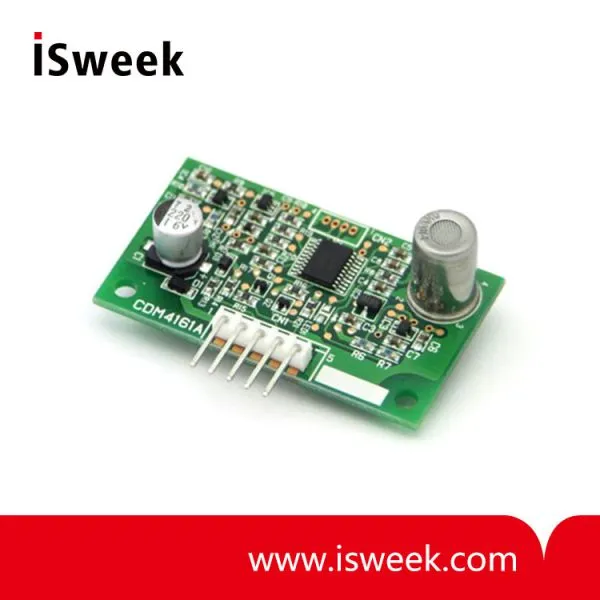

CDM4161A - Pre-calibrated module for carbon dioxide
CDM4161A is a highly miniaturized pre-calibrated CO2 unit which uses Figaro's own compact and low-power consumption solid electrolyte CO2 sensor. Due to Figaro's proprietary idea for signal processing with a microcomputer, no maintenance is required for this module. When compared with traditional CO2 sensor modules using IR sensors, Figaro's CO2 module is much more cost effective, making this module the ideal choice for indoor air quality control systems.
CDM4161A Pre-calibrated CO2 Sensor Module Features:
* Compact size
* High selectivity to CO2
* Maintenance free
* Low power consumption
* Pre-calibrated
* Low cost
CDM4161A Pre-calibrated CO2 Sensor Module Applications:
* Indoor air quality control
CDM4161A Pre-calibrated CO2 Sensor Module Specification:
Product name: Carbon dioxide (CO2) sensor module
Model No.: CDM4161A
Detection range: 400 ~ 4,000ppm
Sensor: Solid state electrolyte type
Accuracy: approx. ±20%
Power supply: 5.0±0.2V DC regulated
Power consumption: 300mW (typical)
Inrush current: 100mA (max)
Operational temperature & humidity range: -10℃~ +50℃, 5~95%RH(avoid condensation)
Storage temperature &humidity range: -20℃ ~ +60℃, 5~90%RH(pack in a moisture-proof bag)
Warm-up time: 2 hours
CO2 concentration signal: VCONC=CO2 conc/1000 (0.4~4.0V DC)
Control signal: ON: HIGH output (when CO2 conc. exceeds 1000ppm)
OFF: LOW output
Trouble signal: LOW output
Reset switch: Establishes the ambient CO2 concentration as 400ppm by HIGH input signal
Dimensions: 45 x 26 x 17mm (45 x 33 x 17mm incl. CN1)
Weight: approx. 6g
