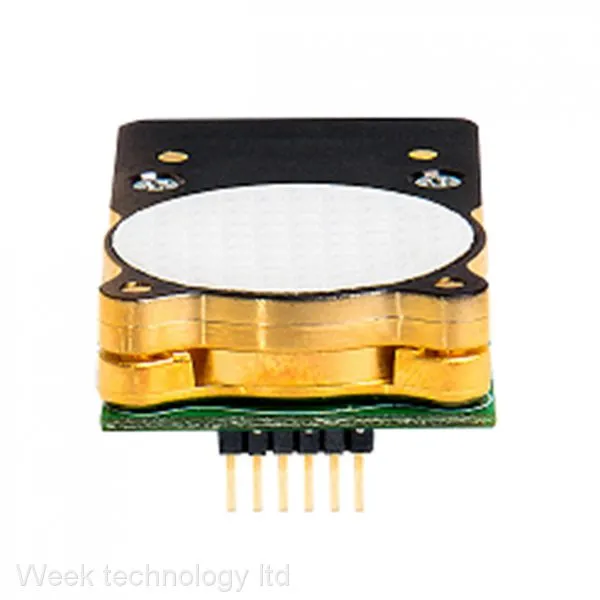

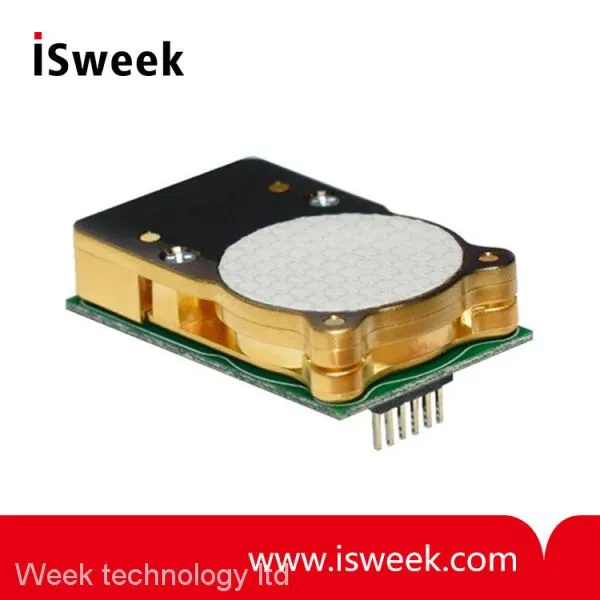

Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor COZIR LP Description
COZIR LP is a low profile, low power, high performance CO2 sensor. Operating at a 2Hz update rate while only consuming 3mW , its world leading power consumption make it ideally suited for battery operation and portable instruments. Based on proven GSS IR LED and Detector technology and innovative optical designs. COZIR LP is a third generation product from Gas Sensing Solutions Ltd - leaders in IR LED CO2 sensing.
With measurement ranges of 0-2000ppm, 0-5000ppm and 0-1% the COZIR LP Sensor is suitable for applications such asBuilding Control and Indoor Air Quality.
• Ultra-low Power 3mW
• Measurement ranges from 0 to 1%
• 3.3V supply
• Peak current only 33mA
• Commands set and electrical interface compatible with GSS COZIR sensor range
Low Power Low Profile Carbon Dioxide Sensor NDIR CO2 Sensor COZIR LP Specifications
| General Performance | |
| Start up time |
First reading 1.2s after power on |
| Operating Conditions |
0°C to 50°C (Standard) -25°C to 55°C (Extended range) 0 to 95% RH, non-condensing |
| Recommended Storage |
-30°C to +70°C |
| CO2 Measurement | |
| Sensing Method |
Non-dispersive infrared (NDIR) absorption Patented Gold-plated optics Proprietary GSS Solid-state source and detector |
| Sample Method |
Diffusion |
| Measurement Range |
0-2000ppm, 0-5000ppm, 0-1% |
| Accuracy |
±50 ppm +/- 3% of reading |
| Calibration |
Autocalibration |
| Non Linearit |
|
| Pressure Dependence |
0.13% of reading per mm Hg in normal atmospheric conditions |
| Operating Pressure Range |
950 mbar to 1050 mbar |
| Response Time |
2- 3 mins (Configurable via filter type and application) Reading refreshed twice per second. |
| Electrical/ Mechanical | |
| Power Input |
3.25 to 5.5V. (3.3V recommended). Peak Current 33mA. Average Current |
| Connector |
6-way 1.27mm header |
| Power Consumption |
3 mW |
| Weight |
5g |
| Dimensions |
31mm x 19.5mm x 8mm |
