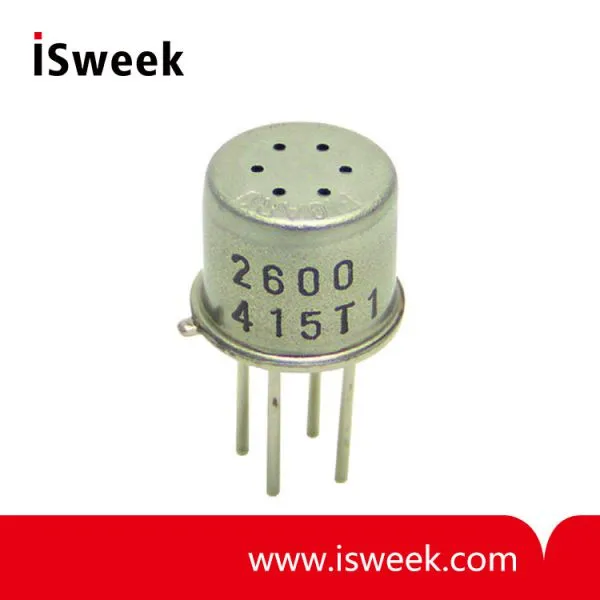

TGS2600 Air Quality Sensor For The Detection of Air Contaminants

TGS2600 - for the detection of Air Contaminants

TGS2600 Air Quality Sensor Features

* Low power consumption

* High sensitivity to gaseous air contaminants

* Long life and low cost

* Uses simple electrical circuit

* Small size

TGS2600 Air Quality Sensor Applications

* Air cleaners

* Ventilation control

* Air quality monitors

The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.

The TGS2600 has high sensitivity to low concentrations of gaseous air contaminants such as hydrogen and carbon monoxide which exist in cigarette smoke. The sensor can detect hydrogen at a level of several ppm. Due to miniaturization of the sensing chip, TGS2600 requires a heater current of only 42mA and the device is housed in a standard TO-5 package.

TGS2600 Air Quality Sensor Specifications

Model number: TGS2600-B00

Sensing principle: MOS type

Standard package: TO-5 metal can

Target gases: Air contaminants (hydrogen, ethanol, etc.)

Typical detection range: 1 ~ 30ppm of H2
