YBF2 series fan explosion-proof motor YBF2 series fan explosion-proof motor Products YBF2 series fan explosion-proof motor model significance YBF2 series fan explosion-proof motor working environment YBF2 series fan explosion-proof motor technical parameters YBF2 series fan with flameproof three-phase asynchronous motor explosion-proof motor
YBF2 series fan with flameproof three-phase asynchronous motor is designed for supporting flameproof fan and can also be used as BT35-11 series explosion-proof axial fan supporting dedicated motor, electrical performance, rated power and so on with YB2 motor the same.
This series of motor explosion-proof performance in line with GB3836.1-2010 "Explosive environment Part 1: General requirements" and GB3836.2-2010 "Explosive environment Part 2: Flameproof enclosure" d "protected equipment" standard, Respectively, made of flameproof Exd Ⅰ, E xd Ⅱ BT4.
YBF2 series fan with flameproof three-phase asynchronous motor is to drive coal mine non-mining face fan power equipment. Explosion-proof mark for the EXDI, suitable for coal mine non-mining surface with methane flammable gas or coal and air to form explosive gas environment of the place.

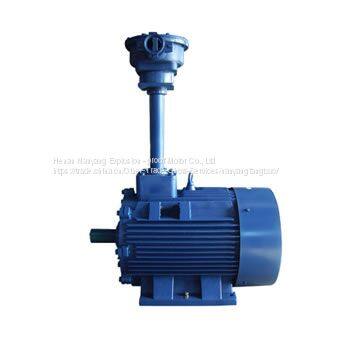

YBF2 series fan explosion - proof motor products
YBF2 series fan with flameproof three-phase asynchronous motor is to drive coal mine non-mining face fan power equipment. Explosion-proof mark for the EXDI, suitable for coal mine non-mining surface with methane flammable gas or coal and air to form explosive gas environment of the place.
YBF2 series fan explosion - proof motor model significance
Model: YBF2 355 M1 4;
Y - Asynchronous motor;
B - Flameproof
F - fan dedicated;
2 - design code;
355 - center high;
M1 - core length;
4 - pole number.
YBF2 series fan explosion - proof motor working environment
1 ambient air temperature changes with the season, generally not more than -15- +35 ℃
2 ambient atmospheric pressure 80-110Kpa
3 no more than 1000m above sea level
4 ambient air maximum relative humidity of not more than 95% (when the temperature is +25 ℃)
5 in wells with methane and other explosive properties
Technical parameters of explosion - proof motor of YBF2 series fan
1. Rated voltage: 380V, 660V, 380 / 660V, 660 / 1140V
2. Rated frequency: 50Hz
3. Protection class: IP55
4. Cooling method: IC411
5. Work system: S1
6. Insulation class: F
7. Installation form: IMB3, IMB5, IMB35 and so on
