The terminal is widely used, mainly used for explosion-proof electrical and junction box for wiring, with a variety of electrical supporting the use of copper for the material, light weight, easy installation, durable, the electrical industry is the most common a conductive product

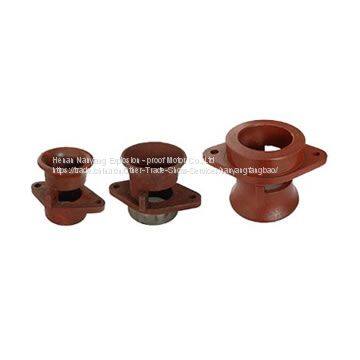

Explosion-proof motor bells are mainly installed in electrical appliances and junction boxes, but also a connection from the role of the product accessories, from the pressure line sealing effect. Materials are made of cast iron, easy to install, easy to use, supporting a wide range of customers to provide size can be replaced.
Please note when ordering:
1. Bell mouth to provide eye size and diameter size
2. Terminal type specification
Explosion-proof motor junction box to achieve explosion-proof requirements:
1. Protection class ≥IP54. Terminal box and box, box and explosion-proof motor and the junction of the mouth with the oil, anti-aging rubber sheet, rubber seals sealed;
2. The cable should be protected from pulling and reliably sealed;
3. The external grounding bolts of the junction box should be made of copper or copper. For internal bolts, when the cable is less than 35mm2, the specifications should be the same with the wiring bolts; greater than 35mm2, should be greater than the wiring bolt cross-1, but not less than 35mm2 specifications. For external grounding bolts, when the explosion-proof motor power> 10kw, should be used not less than M12 bolts; power in the 5-10kw, not less than M10; and then a small motor, not less than M8.
4. Electrical clearance, creepage distance should be greater than the conventional listed values;
