GPS and GSM Combination Antenna LPCG006

Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impedance

50ohm

Axial Ratio

3dB(max)

LNA

Gain

28±2dB

Noise Figure

<1.5

Ex-band Attenuation

12dB CF+50MHz/16dB CF-50MHz

V.S.W.R

<2.0

Supply Voltage

2.2-5V DC

Current Consumption

5-15mA

GSM Antenna

Frequency Range

824-960MHz/1710-2170MHz

V.S.W.R

<2.0

Polarization

Linear

Gain

2.0dBi

Impedance

50ohm

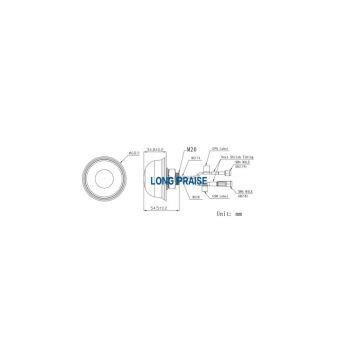

Mechanical

Cable

GPS:RG174/GSM:RG58

Connector

SMA/MCX/FAKRA or others

Material

Radome:ABS/Base:Cast Aluminum

Mounting Method

Screw

Environmental

Operating Temperature

-40-+85 degree

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
