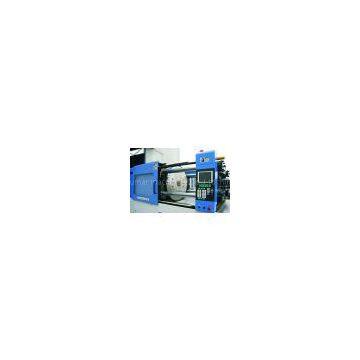

Two Color Injection Molding Machine DKM200D
DKM200D PLATEN DIMENSION dakumar Injection Molding Machine DKM200D Parameters Items Unit DKM200D Injection Unit Screw Type A B Screw Diameter mm 32 36 Injection Pressure kgf/ 1828 1736 Theoretical Shot Volume c 132.6 83 Shot Weight Of Injec
If you want to get more details about our molding machine,please mail to
If you want to get more details about our molding machine,please mail to
martet02@sinogroupe.com or visit :/en/DKM200D-Double-Color-Injection-Machine.html
Two Color Injection Molding Machine DKM200D
PLATEN DIMENSION
|
dakumar Injection Molding Machine DKM200D Parameters
|
||||||
| Items | Unit |
DKM200D
|
||||
| Injection Unit |
Screw Type |
|
||||
| Screw Diameter | mm |
32
|
36
|
|||
| Injection Pressure | kgf/ |
1828
|
1736
|
|||
| Theoretical Shot Volume | c |
132.6
|
83
|
|||
| Shot Weight Of Injection | gram |
111
|
141
|
|||
| ozs |
3.9
|
4.9
|
||||
| Injection Rate | c /sec |
80
|
93.5
|
|||
| Plasticizing Capacity(PS) | kg/hr |
36.6
|
46
|
|||
| Screw Rotation Speed | rpm |
200
|
||||
| Clamping Unit | Mould Clamping Force | metric ton |
200
|
|||
| Mould Clamping Stroke | mm |
450
|
||||
| Mould Thickness | mm |
200-560
|
||||
| Distance Between Tie Bar (HxV) | mm |
525x465
|
||||
| Mould Platen(HxV) | mm |
800x740
|
||||
| Ejector Stroke | mm |
80
|
||||
| Rotary Table Diameter | mm |
600
|
||||
| Distance Between Barrel Centers | mm |
200
|
||||
| Min Distance Between Molds | mm |
-
|
||||
| Mold Sets | set |
1
|
||||
| Electrical Equipment | Pumo Driving Motor | hp(kw) |
30(22.38)
|
|||
| Temperature Controller | set |
2-(0-400 )x4
|
||||
| Heater Capacity | kw |
8.9x2
|
||||
| Others | Machine Dimensions(lxWxH) | mm |
5000x1350x1924
|
|||
| Oil Tank Capacity | liter |
300
|
||||
| Machine Weight | metric ton |
8.8
|
||||
| Max.System Pressure | kgf/c |
140
|
150
|
|||
