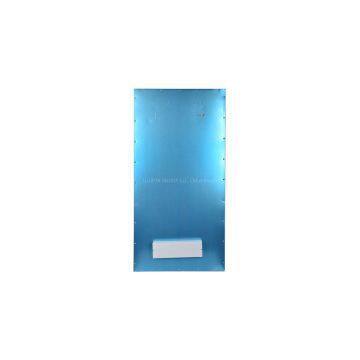

UL LED Panel Light 100LM/W 70W 2x4

Description:

·        Unique design of Light Guide Panel- gives good performance of lighting

·        High-quality of branded chip - provideexcellent lumens

·        Detail assurance - bring reliabletrust to our clients worldwide

Key words: UL LED panel light, DLC LED panel lighting, 2x4 LED panel, LED ceilingpanel light

Brand: ILUBOX

Installation: Recessed, Suspended,Mounted,

Lighting: Side lighting

Application: Meeting Room, Hotel, Office,House, School, Institution, Factory, Warehouse, Hospital etc..

Net/Gross Weight: 7.8kg/9.2kg (PC)

Gross Weight: 9.2kg CTN

Packing Information: 2pcs/CTN, CTN:1215x225x75mm

Panel: L=1214mm W=604mm H=60mm DriverBox=50x100x320mm

Panel: L=47.8" W=23.8"H=2.36" Driver Box=1.96"x3.94"x12.6"

Characteristics: High lumen

Advantages: ILUBOX wanna supply not only goodproducts, but also incredible experience.

Specification:

Model No.: ILU-100-UL24-70

UL Model Number: ET-24-70W

Power: 70W±2W

Power supply: 100~277Vac50/60Hz

Driver Output Data: 25-38Vdc/1400ma/63W

Power Factor/THD/PE: >90%/<20/88%

Driver: Fixed Driver

Over Load/Short Circuit: Protection

Surge/Protection Class IEC: >1KV/ClassII

Hi-pot Test Range: SELV Isolated Driver,3750Vdc/5mA/60S

Total delivered lumens:6650 LM

Colour temperature:  NW 3000K NW 4000K CW 5500K/6000K

CRI / SDCW: >80 / <6

Dimension(MM): 1214x604x11mm

Type of LED:26x46 mil Chip/216pcs

Light Guide Panel brand: TAIWAN ENTIRE

Material: Aluminum

Beam Angle: 120°

LumenMaintenance70%: 100,000hrs

LM80: >97.1% lumen maintance @ 6,000hrs

Dimmable: 0~10V(UL)/Dali/PWM/Traic Optional

Frame Color RAL: Pure white/RAL9016

Power supply unit: external driver

IP/IK/Glow-wire: IP20/IK06/650℃

Temp./Humidity: Working:-20℃~40℃ Storage: <60℃/<75%

Warranty: 5 years
