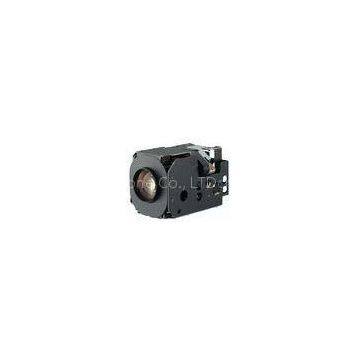

Indoor / Outdoor 26x mini Camera Module FCB-EX490DP Colour Block
Competitive Advantage:
The SONY FCB-EX980P cameras incorporate an advanced Spherical Privacy Zone Masking feature which
allows the masking function to be interlocked with the camera\'s pan/tilt/zoom movements, regardless of the camera angle, ensuring the individual’s privacy.
Feature:
* 26x optical zoom capability
* Advanced Spherical Privacy Zone Masking function (max. 24 masking blocks)
* SMART lens control (Sony Modular Automatic Lens Reset Technology)
* Electronic-Flip (E-Flip) function
* Alarm function
* Auto ICR (IR Cut Filter Removal) Mode
* High-speed serial interface (max. 38.4 Kb/s) with TTL
signal-level control (VISCA™ protocol)
* Equipped with key switch connector (CN601) for camera control with external equipment
* Various customisable settings
* Internal/External sync
* Low power consumption (1.6 W with motors inactive)
* EEPROM backup system without battery
* 16-bytes of free memory is available for recording data such as product serial numbers and camera/system
ID numbers
* Lead-free solder and halogen-free printed-circuit boards
Description:
The SONY FCB-EX980P camera combines a new incredibly high 26 times zoom and Auto ICR capability
with a 1/4 type EXView HAD™ CCD for high sensitivity in low light environments. The Sony FCB-EX980P
camera features a W I D E field of view of 54° and a 2.2° telephoto capability.
Applications:
Sony\'s new FCB-EX series of colour block cameras are equipped with an incredibly high
26x zoom lens which has a wide/telephoto horizontal field of view, making them ideally
suited for use in security domes and traffic monitoring applications .
Technical specification:
| Image device | 1/4 type EXview HAD CCD |
| Effective picture elements | Approx. 440,000 pixels |
| Lens | 26x optical zoom, f=3.5 mm (Wide) to 91.0 mm (Tele), F1.6 to F3.8 |
| Digital zoom | 12x (312x with optical zoom) |
| Viewing angle (H) | 54.2° (Wide end) to 2.2° (Tele end) |
| Minimum working distance | 320mm (Wide end) to 1500mm (Tele end) |
| Sync system | Internal/External (V-Lock) |
| Minimum illumination | 1.0 lx (typical) (50 IRE) |
| S/N ratio | More than 50 dB |
| Electronic shutter | 1/1 to 1/10,000 s, 22 steps |
| White balance | Auto, ATW, Indoor, Outdoor, One-push, Manual |
| Gain | Auto/Manual (-3 to 28 dB, 2 dB steps) |
| AE control | Auto, Manual, Priority mode, Bright, EV compensation, Back-light compensation |
| EV compensation | -10.5 to +10.5 dB (1.5 dB steps) |
| Back-light compensation | On/Off |
| Privacy zone masking | On/Off (24 positions) |
| Focusing system | Auto (sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Picture effects | E-Flip, Nega Art, Black & White, Mirror Image |
| Camera operation switch | Zoom Tele, Zoom Wide |
| Video output | VBS: 1.0 Vp-p (sync negative), Y/C Output |
| Camera control interface | VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, Stop bit: 1 or 2 selectable |
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Operating temperature | 0 to +50°C (32 to 122°F) |
| Power consumption | 6 to 12 V DC/1.6 W (motors inactive), 3.6 W (motors active) |
| Mass | 230 g (8.1 oz) |
| Dimensions (WxHxD) | 55.3 x 57.5 x 88.5 mm (2 1/4 x 2 3/8 x 3 1/2 inches) |
