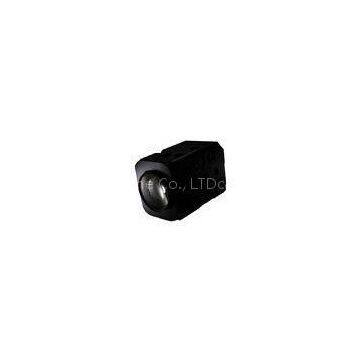

SONY 960h CCD Camera Module 40x Zoom Defog Auto Focus 670 TV lines
Features:
* Sony FCB-EX2700P Color CCD block camera
* Sony FCB-EX2700P PAL / Sony FCB-EX2700 NTSC
* Defog
* 3D + 2D
* 4 Pin Conductor Wire Harness (S-Video)
* Horizontal resolution of 670 TV lines
* 40x zoom lens
* Super HAD CCD II image sensors (perfect for dark environments
* Wide-D (wide dynamic range), Auto ICR, and Spherical Privacy Zone Masking
* Size( WxHxD): 50.0 x 60.0 x 90.9 MM
* Weight: About 265G
Description:
The new FCB-EX series block cameras uses a Progressive Scan (PS) mode to provide smooth and clear images without interlace artifact effects when viewing details in a moving image. Featuring Wide-Dynamic Range, Digital Output (ITU-R BT656), Visibility Enhancer, De-fog, StableZoom function and Auto ICR applications, the new FCB-EX block camera series s idealy suited for Security Survelience, Intelligent Traffic, and Remote Monitoring applications.
Competitive Advantage:
All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series such as Wide-D*, Auto ICR, and Spherical Privacy Zone Masking, and they are specifically designed to be integrated into security domes/cameras. These features and breadth of choice enable you to pick the right camera every time.
The new FCB-EX block camera series s idealy suited for Security Survelience, Intelligent Traffic, and Remote Monitoring applications.
Technical specification:
| Image Sensor | 1/4-type Super HAD CCD II |
| Image Sensor (Number of Effective Pixels) | Approx. 570,000 pixels |
| Horizontal Resolution | 670TVL |
| Signal System | PAL |
| Minimum Illumination (50%, Normal mode, wide-end, aperture (MAX), F ratio) (typical) | 0.6 lx (Shutter speed: 1/50 sec) 0.04 lx (Shutter speed: 1/3 sec) 0.01 lx (Shutter speed: 1/3 sec, ICR ON) |
| Recommended Illumination | 100 lx to 100,000 lx |
| S/N Ratio | More than 50 dB |
| Gain | Auto/Manual (-3 step to 28 step, +2 step/total 16 steps) |
| Shutter Speed | 1/1 to 1/10,000 sec, 22 steps |
| Sync System | Internal/External(V-Lock) |
| Exposure Control | Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation | Yes |
| Aperture Control | 16 steps |
| White Balance | Auto WB, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual |
| Lens | 40x optical zoom f=3.06mm (wide) to 122.4mm (tele) F1.6 to F4.6 |
| Digital Zoom | 12x (480x with optical zoom) |
| Focusing System | Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on |
| Horizontal Viewing Angle (SD) | 60.0°to 1.6 ° |
| Minimum Object Distance | 10 mm to 1500 mm |
| Auto ICR | Yes |
| Wide-D *1 | Yes (On/Off) (On : 90dB) |
| Noise Reduction | Yes |
| Progressive Scan Mode | Yes |
| Image Stabilization | No |
| Stablezoom | No |
| Digital Output | Yes |
| Tone Reproduction | Yes(VE) |
| Spherical Privacy Zone Masking | Yes |
| Motion Detection | Yes |
| Alarm | Yes |
| Slow AE Response | Yes (Max. 2 minutes) |
| Picture Effects | Neg. Art (Negative/Positive Reversal), Black White (Monochrome Image), Color enhancement |
| Picture Freeze | Yes |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | 20 characters/line, max. 11 lines |
| Camera Mode Display | Yes(English) |
| Key Switch Control | Yes |
| Camera Operation Switch | Yes |
| Video Output | Di |
