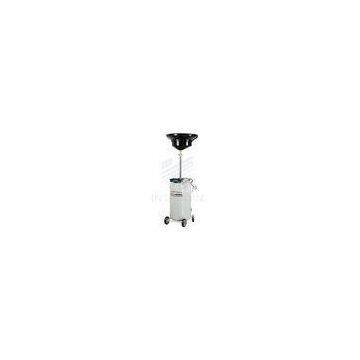

65 - 90 Liter Waste Oil Suction Drainer By Gravity , Air Operated Oil Extractor
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
70L Air Operated Waste Oil Drainer With Extension Funnel And Intergrative Tool Tray
-
Small Air Driven Diaphragm Pump With Nitrile o - Ring / Polypropylane Pump
-
All - Bolted Pneumatic Air Driven Diaphragm Pump For Printing , Paper Making
-
90 Liter Air Driven Diaphragm Pump For Petroleum , Mining And Automotive Industry
-
Squeeze Handle 400Bar Grease Control Valve With 1/4\" Female Inlet 360 Swivel
-
600Bar / 9000PSI Pressure Range Digital Grease Control Valve With 3 / 8\" Inlet Connection
Product Details
| Brand Name | Lubeworks | Place of Origin | China | |
| Model Number | 16206505 |
Product Description
65-90 Liter Air Operated Waste Oil Drainer To Drain By Gravity Waste Oil From Engines
Specifications:
| Item No. | 16206505/16206506 | 16206507/16206508 | 16209009/162090010 | 16209011/16209012 |
| Tank capacity | 65L / 17gallon | 65L / 17gallon | 90L / 24gallon | 90L / 24gallon |
| Collection bowl capacity | 18L / 4.8gallon | 18L / 4.8gallon | 18L / 4.8gallon | 18L / 4.8gallon |
| Collection bowl diameter | 400mm / 16\" | 400mm / 16\" | 400mm / 16\" | 400mm / 16\" |
| Maximum height | 1510mm / 59.4\" | 1610mm / 63.4\" | 1850mm / 72.8 | 1950mm / 76.8\" |
| Minimum height | 1010mm / 39.8\" | 1110mm / 43.7\" | 1150mm / 45.3\" | 1250mm / 49.2\" |
| Draining hose length | 2000mm / 78.7\" | 2000mm / 78.7\" | 2000mm / 78.7\" | 2000mm / 78.7\" |
| Max. draining pressure | 1bar / 14.5psi | 1bar / 14.5psi | 1bar / 14.5psi | 1bar / 14.5psi |
| Air inlet connection | 1/4\"quick plug | 1/4\"quick plug | 1/ 4\"quick plug | 1/ 4\"quick plug |
| 1/4\"NPT Female | 1/4\"NPT Female | 1/ 4\"NPT Female | 1/ 4\"NPT Female | |
| Extension Funnel diameter | **** | 606mm / 23.8\" | **** | 606mm / 23.8\" |
| Weight | 27kgs / 60lbs | 29kgs / 64lbs | 32kgs / 70lbs | 34kgs / 75lbs |
| Package size | 46x40x87.5cm | 46x40x87.5cm / 65x15x62cm | 48x44x100cm | 48x44x100cm / 62x15x62cm |
