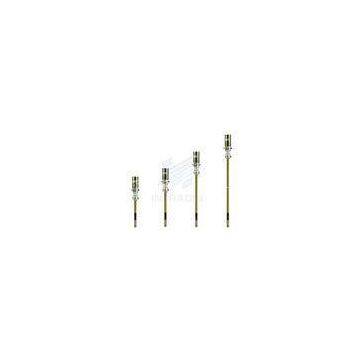

Anti - Corrosion Air Driven Grease Pump Double Action , High Viscosity Drum Pumps
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
75 / 1 Ratio Pneumatic Grease Pump With Rugged Inlet Cage / High Flow Capability
-
70 - 180psi Pneumatic Grease Pumps Air Operated For Automotive Sevice Facilities
-
High Accuracy 30 Liter Digital Oil Meter With Low Battery Indicator / Liquid Flowmeter
-
Aluminum Digital Oil Flow Meter With LCD Display Powered By 3.6V Battery
-
1/2\" Female Inlet Connection Oil Control Valve With Flexible Spout or Manual Tip
-
10 Gallon Digital Oil Control Valve With Low Battery Indicator And Rigid or Flexible Spout
Product Details
| Brand Name | Lubeworks | Place of Origin | China | |
| Model Number | 17116500 |
Product Description
Transferring Grease And High Viscosity Oil Pneumatic Grease Pump With Double Action
Specifications:
| Item No. | 17116500/17116502 | 17116530/17116532 | 17116550/17116552 | 17116560/17116562 |
| Drum application | 13kgs / 30lbs | 20-30kgs / 44-66lbs | 50-60kgs / 110-132lbs | 180-220kgs / 400-484lbs |
| Pressure ratio | 65:01:00 | 65:01:00 | 65:01:00 | 65:01:00 |
| Air inlet pressure | 5-8bar / 70-115psi | 5-8bar / 70-115psi | 5-8bar / 70-115psi | 5-8bar / 70-115psi |
| Max. fluid pressure | 520bar / 7280psi | 520ar / 7280psi | 520bar / 7280psi | 520bar / 7280psi |
| Air motor effective diameter | 70mm / 2.75\" | 70mm / 2.75\" | 70mm / 2.75\" | 70mm / 2.75\" |
| Air consumption (min) | @ 8bar 600L | @ 8bar 600L | @ 8bar 600L | @ 8bar 600L |
| Max.free flow rate (min) | 1000g / 2.2lbs | 1000g / 2.2lbs | 1000g / 2.2lbs | 1000g / 2.2lbs |
| Suction tube diameter | 30mm / 1.18\" | 30mm / 1.18\" | 30mm/1.18\" | 30mm/1.18\" |
| Suction tube length | 370mm / 14.5\" | 480mm / 19\" | 740mm / 29\" | 940mm / 37\" |
| Air inlet connection | 1/ 4\"quick plug | 1/ 4\" quick plug | 1/ 4\" quick plug | 1/ 4\" quick plug |
| 1/ 4\"NPT Female | 1/ 4\" NPT Female | 1/ 4\" NPT Female | 1/ 4\" NPT Female | |
| Oil outlet connection | 3/8\" F | 3/8\" F | 3/8\" F | 3/8\" F |
| Weight | 4.75kgs / 10.5lbs | 5.0kgs / 11.0lbs | 5.5kgs / 12.0lbs | 6.0kgs / 13.2lbs |
| Package size | 13x13x90cm | 13x13x90cm | 13x13x117cm | 13x13x137cm |
Description:
| 65:1 AIR-OPERATED GREASE PUMP | ||
| • Ideal for transferring grease and high viscosity oil | ||
| • Anti corrosion treatments reduce internal friction & limit wear over time | ||
| • Compatible with different sizes of grease drum in the market | ||
| • Double action guarantees the delivery of continuos and constant flow | ||
| • Air inlet connection: 1/4\'\' Quick plug /1/4\'\' NPT Female | ||
| • Air consumption: 600L/M(115psi 9CFM) |
