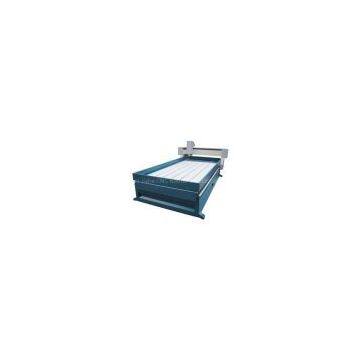

JK-1224 CNC Engraving Machine for Stone

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jingke		Place of Origin	China
Model Number	JK-1224

JK-1224 CNC Engraving Machine for Stone:

Machine features for JK-1224 CNC Engraving Machine for Stone:

1. Particular style, competent for elaborate engraving and cutting.

2. The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.

3. NCSTUDIO or DSP control system can be chosen at your decision.

4. Be compatible with type 3, Artcut, Artcam software.

5. Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.

Technical parameter:

MODLE	JK-1224
Work dimensions	1200 x 2400 x 120mm
Body dimensions	1500 x 2600 x 1600mm
Z-axis working area	120mm
Max. Feeding height	120mm or bigger
Cut thickness of material	40mm
Max. Speed	6000mm/min
Working speed	0 - 4000mm/min
Mechanical precision	0.01mm
Software	Artcam, Artcut, Type3 software
Total power consumption	4000W
Power source	AC 220/50Hz
Driver type	stepper motor
Spindle	3KW variable speed, water-cooled
Spindle speed	0 - 24,000rpm
Blade diameter	1 - 6mm
Control system	NCSTUDIO
Command	HPGL,G code, u00, mmg, plt
N.W.	750KG.
G.W.	850KG.
