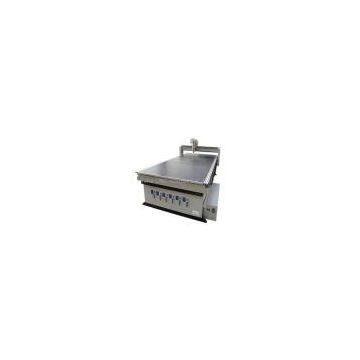

JK-1530 Stone CNC Engraver

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jingke		Place of Origin	China
Model Number	JK-1530

JK-1530 Stone CNC Engraver:

Usage: can be used to engrave various materials.

Machine features for JK-1530 Stone CNC Engraver:

Particular style, competent for elaborate engraving and cutting.

4.5KW water-cooled spindle motor.

The lathe bed is Steel Structure to ensure high stability. Three axes all adopt linear square rail.

Be compatible with type 3, Artcut, Artcam software.

Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.

Technical parameter:

Model	JK-1530
Machine Body	Steel Structure
Working Area	1500×3000×150mm
Machine Size	1600×3400×1900mm
X,Y Movement	Gear Rack
Guide	Linear square rail/Taiwan
Z axis working area	80mm
Max feeding height	120mm or bigger
Cut thickness of material	≤60mm
Max.speed	30000mm/min
Working speed	0-15000mm/min
Mechanical precision	0.02mm
Software	ARTCAM,TYPE3,ARTCAM
Working voltage	AC 220V/50Hz
Drive type	Stepper Motor
Spindle	4.5KW variable speed, water cooled
Spindle speed	0-24000rpm
Blade diameter	1-12.7mm
Control system	DSP or Ncstudio
Command	HPGL.G code,u00,mmg,plt
