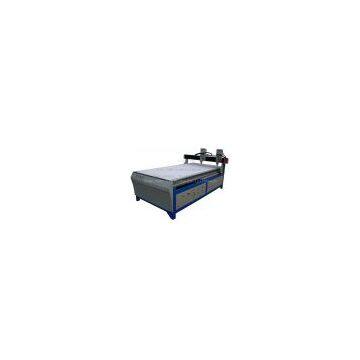

cnc machine JK-1224

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JK		Place of Origin	China
Model Number	JK-1224

machine can be produced completely according to your demands!

Model JK-1224
Specification:
Structure	Cast iron
X, Y axis travelling area	1200 ×2400mm
Z axis travelling area	120mm
Machine size	1360×2650mm
X-Y-Z movement	High precision ball screw drive/Gemany
Guide	Linear square/Taiwan
Max.speed	20m/min
ing speed	15m/min
Working precision	0.02mm
Repositioning accuracy	0.025mm
Engraving command	G code * u00* mmg* plt
Software environment	windows98/2000/xp
Working voltage	AC220V/50-60Hz, 2-phase
Spindle power	3kw water-cooled motor
Spindle speed	0-24000rpm
Driver motor	Stepper motor
Software	Type 3, Artcut , Artcam software
Control system	DSP0501
Collet	ER20-12.7mm,6mm,3.175mm
No.of spindle heads optional	one or two heads or four heads
N.W.	700KG.
G.W.	800KG.
Packing size(wooden crate)	3.11.81.8m

Terms and Conditions:

1.The prices are in USD. FOB QINGDAO

2.transport:by ship

3.port of destination: YOUR PORT

4.Lead time : 20WORKING days after we receive the first 50%T/T.

5.Terms of payment : T/T payment. 50% IN Advance and 50% Against fax or email copy of the B/L.

6.Place of Origin: Jinan, China

7.Guarantee :one year .

8. package: Wooden Case for export standard.

Guarantee and After-sale service:

1 year guarantee

24hour’s technical support and e-mail or calling

Use the English manual friendly and can refer to the Video CD for to know the machine using and maintaining
