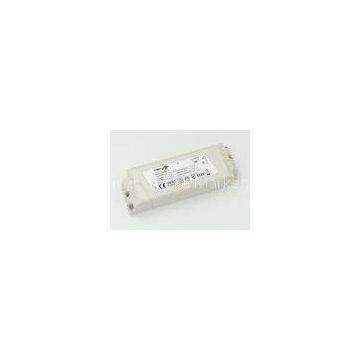

On off Daylight Harvesting Sensor For LED T8 Tube MC008S / 600mA LED Driver
Negotiable
MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Merrytek
Place of Origin:
China
Model Number:
ML25C-V + MS01 + MC008S
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Auto Switch Off And Dimming MW Sensor Daylight Harvesting Sensor CE R&TTENegotiableMOQ: 1 Piece -
50mA 1-10V DC Dimming Daylight Harvesting Sensor For Office LightingNegotiableMOQ: 1 Piece
-
Dimmable Constant Current LED Drivers, 10W / 15W, 350mA / 700 mANegotiableMOQ: 1 Piece
-
0 - 10V Dimmable LED Tri-proof Light Fixed or Suspended Installed 600mm IP65NegotiableMOQ: 1 Piece
-
USB Port 5V 10A - 2100 MA Laptops AC DC Switching Power Supply / AdaptersNegotiableMOQ: 1 Set
Brand Name
Merrytek
Place of Origin
China
Model Number
ML25C-V + MS01 + MC008S
Delivery Time:1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Certification:CE , R&TTE
Certification:CE , R&TTE
On – OFF function MW sensor work MC008S with dimmable led driver ML25C-V and 1-10V Daylight Harvesting Sensor MS01
Description:
Widely applied for led T8 tube,panel light,ceiling lamp in meeting room,lobby,office Lux level of certain surface will be maintained by daylight harvesting sensor MS01 accroding to ambient light level MS01 work with ML25C-V and MW sensor MC008S to provides daylight harvesting, auto switch off and dimming function Output current 600mA Directly connected to 1-10V interface. Simple setting of the target light level by mean of potentiometer MC008S will switch off load when no motion detected MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output according to the signal from the daylight sensor.Function:
Daylight harvesting, auto switch off and dimming function
Specifications:
|
Operating voltage |
1 - 10Vdc(MS01) 220-240Vac(ML25C-V,MC008S) |
|
Max. current sink |
50mA(MS01) 600mA(ML25C-V) |
|
Dimming range |
1％~100％ |
|
Output voltage |
42Vdc max |
|
Cable length |
80Cm |
|
Color coding of cable |
Red+, Black- |
|
Detection angle |
90° |
|
IP rating |
IP20 |
|
Operation Temperature |
-0℃~45℃(MS01) -25℃ ~ 50 ℃(ML25C-V) -20℃ ~ 60 ℃(MC008S) |
Wiring:
Applications:
Office, Workshop, Warehouse, etc
