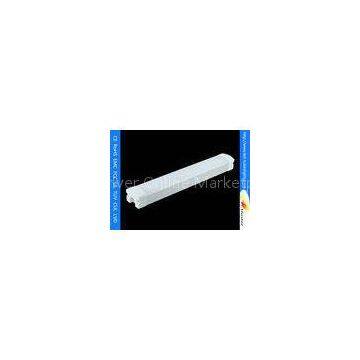

0 - 10V Dimmable LED Tri-proof Light Fixed or Suspended Installed 600mm IP65

Delivery Time:3-5 working days for sample order,10-20 working days for bulk order(depending on order quantity)
Certification:CE , RoHS , TUV

0 - 10V Dimmable LED Tri-proof Light Fixed or Suspended Installed 600mm IP65


Description:

IP 65 Tri-proof Lighting Fixtures are used in places where the light source is sealed form the outside elements like water and dirt. It creates high illumination while providing a washdown capability.This is especially needed in food service lighting, agricultural lighting, laboratory, industrial and other places where need light not be compromised by the surrounding environment. The is made of PC which means it won’t turn yellow like less inexpensive forms of plastic.


Specifications:


Item No.	ALS-TRI12
Dimension	600*91*74mm
Power	20W
Light Source	SMD2835
LED Qty	120pcs
Luminous Flux	1700~2200lm
Luminous Efficiency	95-110lm/W
Input Voltage	AC85-135V, AC185-265V
Forwarder Current	50-55mA
Working Frequency	50/60Hz
Body Material	AL housing+PC cover+Aluminum board
Beam Angle	180°
CRI	80-85
Power Factor	>0.95
Color Temp.	WW: 3000-3500K,4000-4500K  PW: 4500-5000K, 5000-5500K, 5500-6000K CW:>6000K
Working Temp.	-20~45℃
Waterproof Level	IP65
Working Lifetime	30,000 hours
Warranty	5 years
Certificate	CE,RoHS,TUV
Packing	Carton Size: 680*260*300mm      6pcs/carton                    N.W.: 7kg      G.W.: 10kg



Features:

1. This product meets the standard of CE, Rohs and TUV certification.
2. Water-proof design without adhesive, so there is no water leakage caused by adhesive aging, convenient to disassemble.
3. Light panel and PSU adopt modular design,connected via terminals, easy and convenient to maintain, no need of soldering.
4. Energy saving and eco-friendly, no IR or UV ,no mercury contamination, RoHS compliant.
5. Aluminum profile+PC, high impact resistance, good waterproof and anti-aging performance.
6. High transmittance PC cover transmit soft light+small power LEDs, high light efficiency ,uniform light ;no dark spot.
7. High efficient heat dissipation, LEDs and power supply low temperature rise ,high stability of continuous working.
8. Can switch start frequently, no flicker and flare ,good color rendering performance. Compact appearance, novel design style, easy to install and transport.


Applications:

Suitable for corrosive strong, dusty areas, Industrial lighting demand places, such as: Iron and steel, ships, railway, electric power, metallurgy, petrochemical and all kinds of factory, workshop, places and large facilities, venues and other places.


Competitive Advantage:


Patent and functional design wih imaginative appearance; 5 years warranty; Waterproof / Dust-proof / Corrosion-proof; Special design with Stainless steel clips; Aluminum housing + aluminum board + high grade PC cover, better heat dissipation and excellent light transmittance; Advanced equipment: Yamaha and Philips SMT; 100% for 24-48 hours impact aging test before packing； Easy to install and low cost of maintenance; Striped /Milky PC cover available; Constant current isolated driver with unique technology, well brand IC and Japan Rubycon; Superior Taiwan chip, high efficiency and energy saving more than 70%; Widely use for ambient lighting application.
