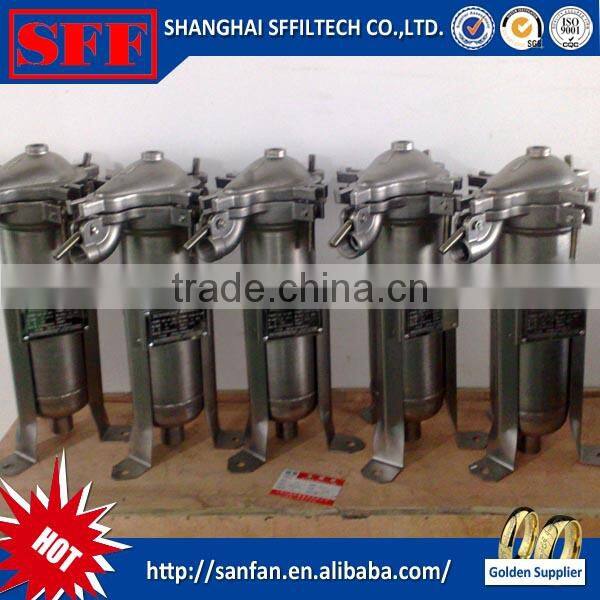

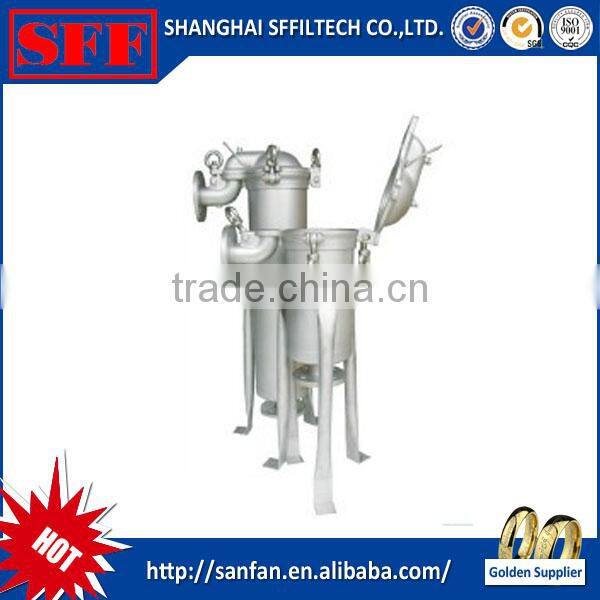

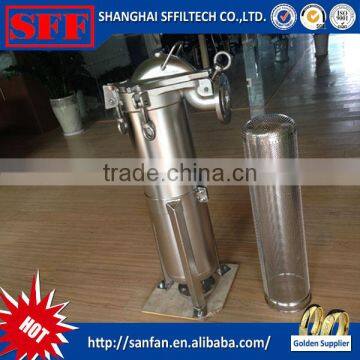

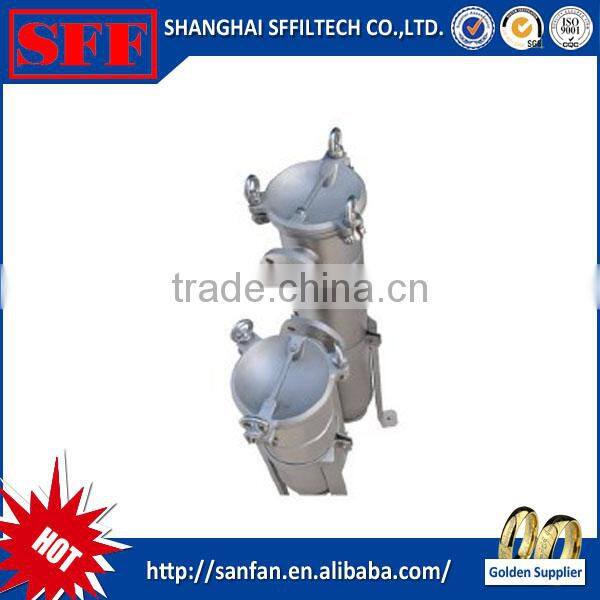

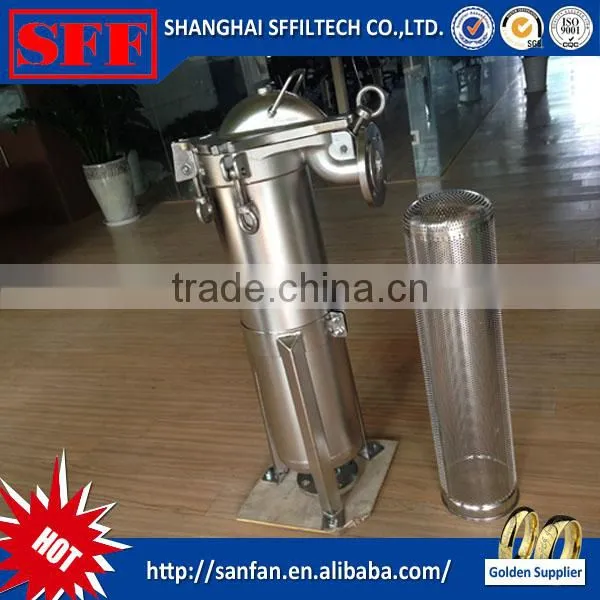

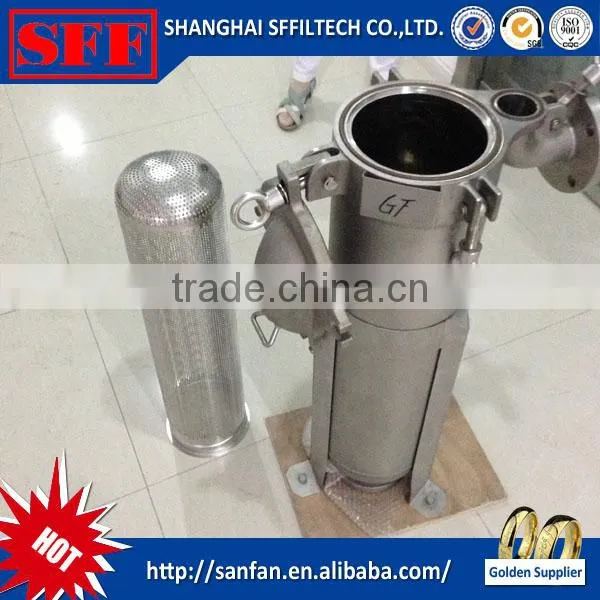

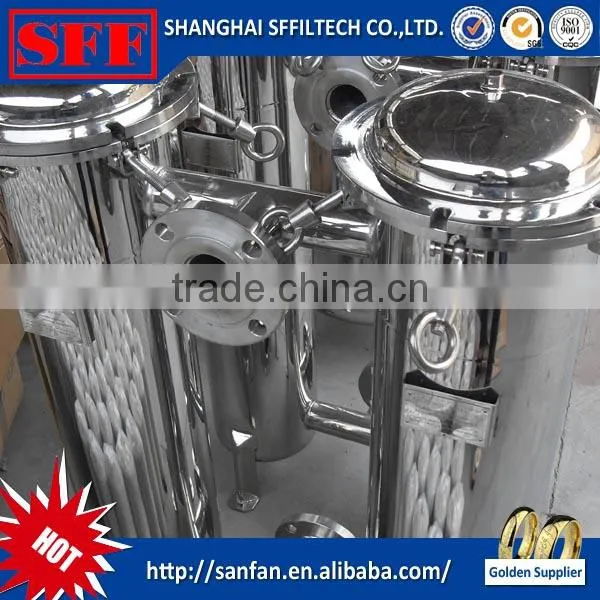

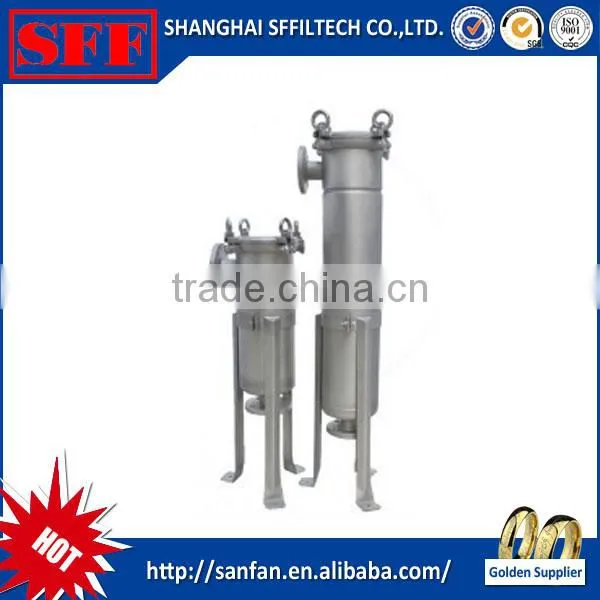

304 and 316L Stainless Steel liquid filter housing

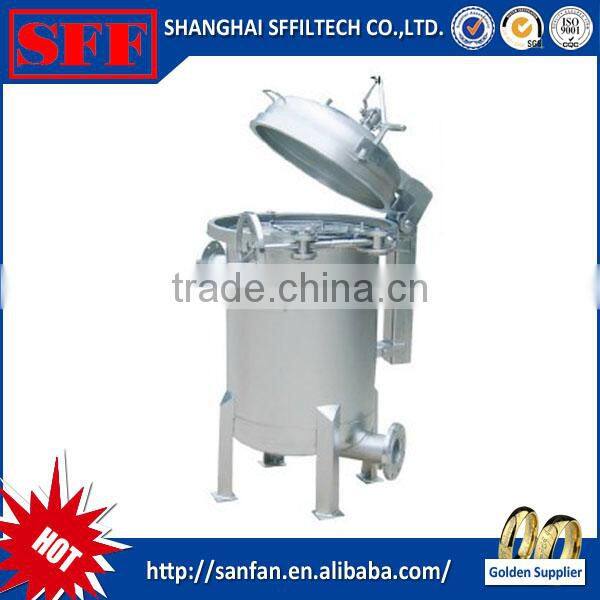

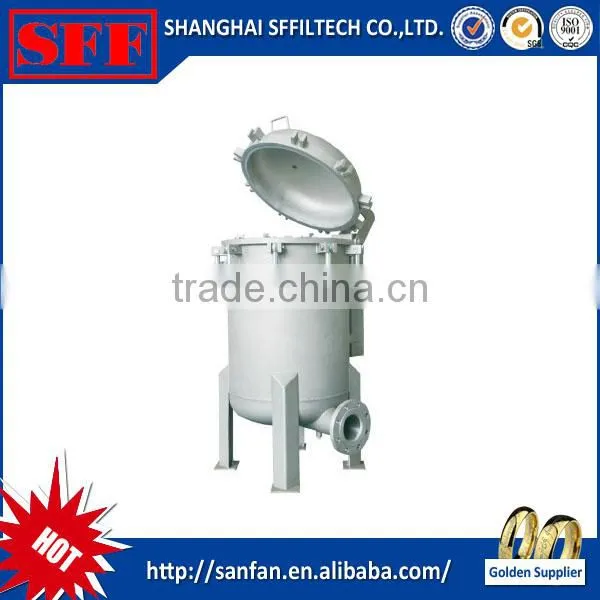

Multi-bags filter housing with capacities of up to 24 bags.

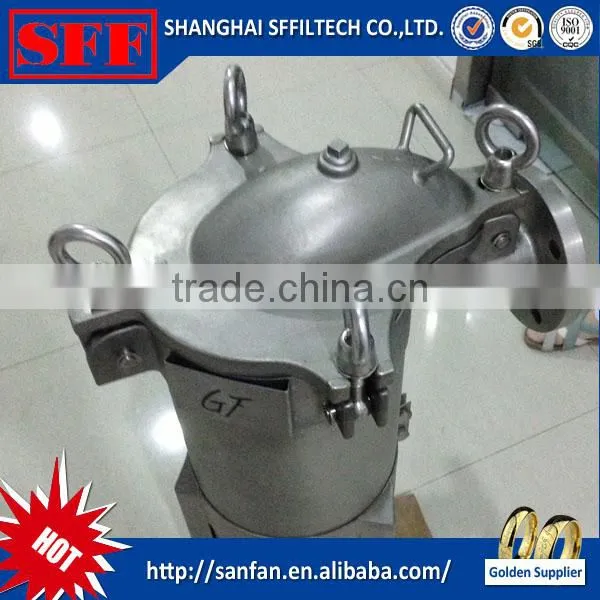

The cover flange adopt handwheel and swing bolts ,open and close easily ,fast bag changeouts.
Positive o-ring sealing offers easy and safe operation.
Main Specifications of Bag Filter Housing :
| Vessel Mode | Suitable for bag number | Bag size | Filter area(m2) | Max Flow Rate(m3/h) | Max pressure (Mpa)) | Inlet & Outlet flange connection | Material |
| DL-2P2S | 2 | 2 | 1 | 90 | 1 | 3-4'' | SS304/316 |
| DL-3P2S | 3 | 2 | 1.5 | 135 | 1 | 3-4'' | SS304/316 |
| DL-4P2S | 4 | 2 | 2 | 180 | 1 | 3-6'' | SS304/316 |
| DL-5P2S | 5 | 2 | 2.5 | 225 | 1 | 3-6'' | SS304/316 |
| DL-6P2S | 6 | 2 | 3 | 270 | 1 | 3-6'' | SS304/316 |
| DL-7P2S | 7 | 2 | 3.5 | 315 | 1 | 3-8'' | SS304/316 |
| DL-8P2S | 8 | 2 | 4 | 360 | 1 | 4-8'' | SS304/316 |
| DL-10P2S | 10 | 2 | 5 | 450 | 1 | 6-8'' | SS304/316 |
| DL-12P2S | 12 | 2 | 6 | 540 | 1 | 6-10'' | SS304/316 |
| DL-14P2S | 14 | 2 | 7 | 630 | 1 | 8-10'' | SS304/316 |
| DL-16P2S | 16 | 2 | 8 | 720 | 1 | 8-12'' | SS304/316 |
| DL-18P2S | 18 | 2 | 9 | 810 | 1 | 10-14'' | SS304/316 |
| DL-20P2S | 20 | 2 | 10 | 900 | 1 | 10-16'' | SS304/316 |
| DL-22P2S | 22 | 2 | 11 | 990 | 1 | 12-18'' | SS304/316 |
| DL-24P2S | 24 | 2 | 12 | 1080 | 1 | 14-18'' | SS304/316 |
Main Specifications of Cartridge Filter Housing :
| Material: | High Quality Stainless Steel 304 or 316L |
| Design Pressure: | 150 PSI (10 Bar) |
| Work Temperature: | 110 Degree |
| Cartridge Quantity | 1, 3, 5, 7, 9, 11, 12, 13, 15, 20, 30… … 120 Round |
| Cartridge Length | 5" , 10" , 20" , 30" , 40" |
| Cartridge Adaptor | DOE, 222, 226 |
| Inlet/Outlet: | Tri-Clamp , Flange,Threaded |
| Gasket Material | SILICONE, EPDM, PTFE, VITON Etc |
| Surface Finish: | Mirror Polish, Electrical Polish, Acid Washing, Sand Blast Etc |
| Configuration: | CIP Spray Ball, Manhole, Liquid Level, Sampling Socket |
| Temperature Gauge, Pressure Gauge, Adjusting Leg, Ladder etc. | |
| Applications: |
Food & Beverage, Wine Industry, Pharmaceutic, Chemical Industry etc |

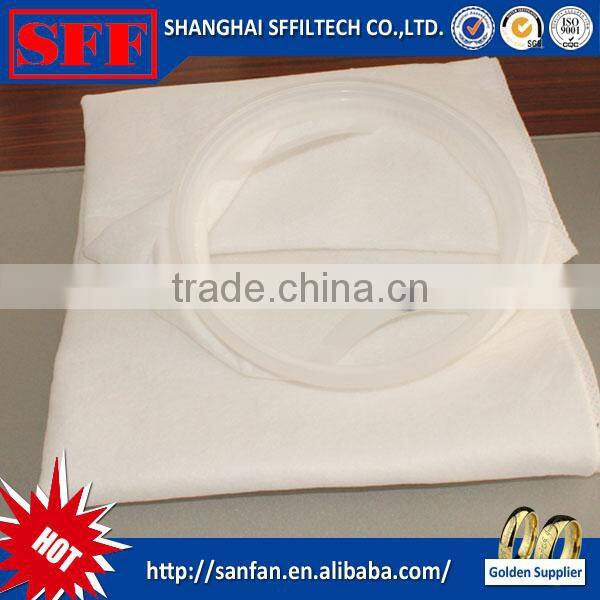

Liquid filter bag:
Shanghai Sffiltech Co., Ltd with 19 years in liquid, dust annd air filter field includling liquid filter bag, liquid filter bag housing, dust filter fabric, dust filter bag, panel filter, pocket filter and hepa filter.
Dear friend, if you have any need, please feel free to conctact us.
1: Where is the liquid filter housing originate in ?
A: It origins of Shanghai.
2:What is the payment of liquid filter housing?
A:We prefer T/T and L/C t
3. What’s the delivery time of liquid filter housing?
A: Generally the it is finished within 1 week
