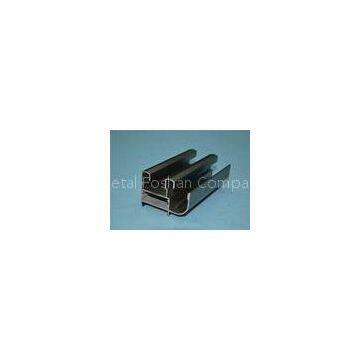

Construction Anodized Bronze Aluminium Extrusion Profile 6063-T6 / T5

Construction Anodized Bronze Aluminium Extrusion Profile 6063-T6 / T5 thumbnail-1
Construction Anodized Bronze Aluminium Extrusion Profile 6063-T6 / T5 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DeYuan
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Deyuan Metal Foshan Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DeYuan
Place of Origin China
Delivery Time:20 days
Certification:ISO9001:2004, SGS

Detailed Product Description

Product Name: Anodized Aluminium Profile Alloy: 6063,6060,6463

Material :

Aluminium Alloy

Surface Treatment:

Mill Finished, Anodizing, Electrophoresis,

Powder Coating, Polishing, Wooden grain,

Sand Blasting

Deep Process : Milling, Drilling ,Bending, Cutting Temper: T5,T6,T66

Anodized Bronze Aluminium Extrusion Profile 6063-T6 / T5

Description:

Material 6063 6060 6463 T5 T6 T66
Surface Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting
Color Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating
MOQ 1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
Length

For Anodizing and Electrophoresis: Maximum 6.8 Meters

For Powder Coating : Maximum 12 Meters

Packing 1) EPE, waterproof paper wrapped in small bundles.
2) paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container
Sample delivery Two weeks (one week for mould +one week making sample)
Sample design It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.
Maximum extruder machine 3500 tons; Minimum extruder machine: 500 tons

Company business :

We produce alloy 6063, 6060, 6005,6463,6061,6082 etc, and surface treatment including mil finish, anodizing, (nature, champagne, bronze, black, and gold), electrophoresis, powder coating, PVDF painting,electrophoresis, powder coating, wooden grain and other special treatment polishing, bright dip anodizing (gold and silver), brushing and sand blasting for high grade decoration application. We can also produce profiles according to customer’s requirements such as drawings and samples and comply with GB, ASTMB and EN standard. Our products have been sold to many overseas market including Germany, Italy, France, UK, Holland, Belgium, Austria, America, Canada, Porto Rico, Brazil and Ecuador, Turkey, Iraq, Australia, Singapore, India, South Africa, Ethiopia, Nigeria, Algeria, Fiji Island and etc.

Primary Technical Data

1) Chemical composition

Alloy Si Mg Fe Cu Mn Zn Cr Ti
6063 0.2~0.6 0.45~0.90 <0.35 <0.10 <0.10 <0.10 <0.10 <0.10
6060 0.3~0.6 0.35~0.60 0.1~0.3 ~ <0.10 <0.15 <0.05 ~
6463 0.2~0.6 0.45~0.90 <0.15 <0.20 <0.05 <0.05 ~ ~
6005 0.6~0.9 0.40~0.60 <0.35 <0.10 <0.10 <0.10 <0.10 <0.10
6061 0.4~0.8 0.80~1.2 <0.70 0.15~0.4 <0.15 <0.25 0.04~0.35 <0.15
6082 0.7~1.3 0.60~1.2 <0.50 <0.1 0.4~1.0 <0.20 <0.25 <0.10
6351 0.7~1.3 0.40~0.8 <0.50 <0.1 0.4~0.8 <0.20 ~ <0.10

2) Mechanical property

Alloy Temper Tensile strength Yield strength Elongation

6063

T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T5 ≥ 265Mpa
