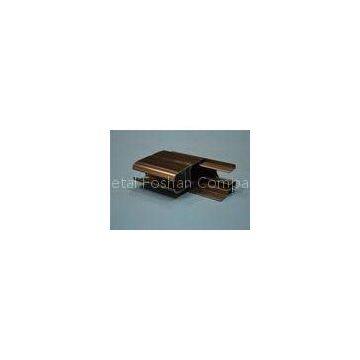

Anodized Electrophoresis Champagne Window Aluminium Extrusions Profiles
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DeYuan
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Customized Black Anodized Aluminium Profile Extrusion Shapes 6063-T6NegotiableMOQ: 1 Piece -
Silver Brush 6063-T5 Anodized Aluminium Profile for Construction WindowNegotiableMOQ: 1 Metric Ton
-
Silver Anodizing Bright Aluminium Extrusion Profile for Windows 6063-T5NegotiableMOQ: 1 Piece
-
Bright Silver Anodized Aluminium Profile Extrusion Windows Profile 6063-T5NegotiableMOQ: 1
-
6063-T6 Silver Anodized Aluminium Profile , Window Aluminium FrameNegotiableMOQ: 1 Piece
Brand Name
DeYuan
Place of Origin
China
Delivery Time:20 days
Certification:ISO9001:2004, SGS
Certification:ISO9001:2004, SGS
Detailed Product Description
| Product Name: | Anodized Aluminium Profile | Alloy: | 6063,6060,6463 |
|
Material : |
Aluminium Alloy |
Surface Treatment: |
Mill Finished, Anodizing, Electrophoresis, Powder Coating, Polishing, Wooden grain, Sand blasting |
| Deep Process : | Milling, Drilling ,Bending, Cutting | Temper: | T5,T6,T66 |
Anodized Electrophoresis Champagne Aluminium Extrusion Windows Profile
Description:
| Material | 6063 6060 6463 T5 T6 T66 |
| Surface | Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting |
| Color | Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating |
| MOQ | 1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
| Length |
For Anodizing and Electrophoresis: Maximum 6.8 Meters For Powder Coating : Maximum 12 Meters |
| Packing | 1) EPE, waterproof paper wrapped in small bundles. 2) paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container |
| Sample delivery | Two weeks (one week for mould +one week making sample) |
| Sample design | It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design. |
| Maximum extruder machine | 3500 tons; Minimum extruder machine: 500 tons |
About us :
Deyuan Metal Foshan Co., Ltd. is a comprehensive and professional enterprise integrating research, design production and sales of aluminium extrusion profiles for construction and industrial applications. There are currently 26 aluminum extrusion process lines at 500MT TO 2500MT, 3 process lines for anodizing, 2 process lines for powder coating, 1 process line for painting, 1 process line of polishing and brushing. Our annual production capacity has reached 80,000 tons which is at the forefront of the aluminium industry in China.
Primary Technical Data
1) Chemical composition
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
| 6063 | 0.2~0.6 | 0.45~0.90 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6060 | 0.3~0.6 | 0.35~0.60 | 0.1~0.3 | ~ | <0.10 | <0.15 | <0.05 | ~ |
| 6463 | 0.2~0.6 | 0.45~0.90 | <0.15 | <0.20 | <0.05 | <0.05 | ~ | ~ |
| 6005 | 0.6~0.9 | 0.40~0.60 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6061 | 0.4~0.8 | 0.80~1.2 | <0.70 | 0.15~0.4 | <0.15 | <0.25 | 0.04~0.35 | <0.15 |
| 6082 | 0.7~1.3 | 0.60~1.2 | <0.50 | <0.1 | 0.4~1.0 | <0.20 | <0.25 | <0.10 |
| 6351 | 0.7~1.3 | 0.40~0.8 | <0.50 | <0.1 | 0.4~0.8 | <0.20 | ~ | <0.10 |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
|
6063 |
T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T5 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
