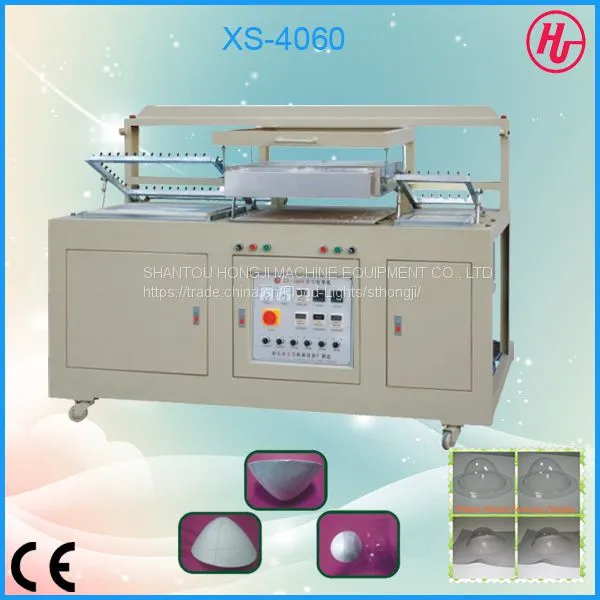

XS-4060 Plastic Shots Vacuum Forming Machine

Functions:
To mold plastic cup of different sizes
To be used as bra cup holder
To stabilize the shapes of bra cup
For easy measurement of bra size

Application: It is suitable for molding pvc material to get a pvc cup. The material can be pre-heated and then use vacuum device to form cup shape.

Function: It is suitable for the suction forming of various PVC cups.
Features:
1. This machine is the latest vacuum forming machine which is developed according to the thickness and molding depth of PVC cups with the diameter range between 224mm to 530mm.
2. The production of this machine has been paid great attention to its technology improvement and it has been equipped with advanced program control operating system.
3. Both clamping devices and heating furnace has been adopted auto and manual bi-directional regulating system and the embedded ceramic infrared parts to enhance the thermoforming effect.
4. Between its clamping devices, this machine has been equipped with multi temp-controllers.

Technical parameter:
1. Power supply: 220V
2. Power: 7.5KW
3. Dimension of mould table: 290mm×246mm / 540mm×340mm
4. Dimension of machine: 1900mm×825mm×1700mm ( L* W* H)
5. Working principle: vacuum forming
6. Applicable material: PVC plaster moulds
7. Applicable scope: the suction forming by PVC Plaster moulds
8. Weight: 300KG
