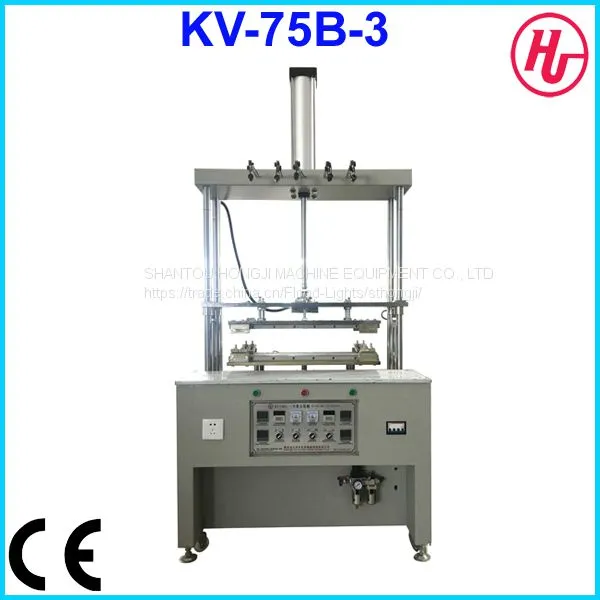

KV-75B-3 New Design One Piece Seamless Bra Molding Machine

Function:

This kind of machine is mainly used for molding one piece bra.

Features:

(1) This kind of machine adopts the fuselage design with high strength, which is delicate and exquisite in structure and lifts steadily.

(2) Using the spring-actuated pressing frame and no less than 9 infrared searching lights for positioning, it can adjust freely and bears the features such as high molding rate and good positioning.

(3) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube’s service life.

Technical parameter:

Power supply/ power: 220V/9KW

Specification of the electro-thermal pipe: Φ 12×280mm×500W-220V

Dimension of the mould table: 900mm×280mm (selection)

Dimension of the machine: 1300mm×815mm×1800mm

Applicable material: material for bras and other garments

Applicable moulds: moulds for foam cups

Weight: 1000KG
