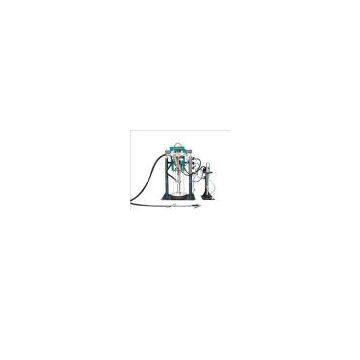

Sealant Spreading Machine GT02

Sealant spreading machine GT02

(America Graco motor)

Main Technique Parameter

Mixing rate:                              6:1-14:1

A sealant:                                55 Gallon (200L)

B sealant:                                5Gallon (20L)

Air consumption:                          0.8 m³/min.

Sealant pressure:                         29Mpa

Air pressure:                              0.5-0.8Mpa

Diamention:                              1100X950X1630mm 650kg

Weight:                                   650kg

Machine Introduction

GT02 high-efficiency sealant spreading machine, whose key parts are made of GRACO from the USA, has a good quality and reliability. The key parts are made of high-tension and high quality stainless steel with thermal treatment, the reliability and durability of the machine are greatly improved, ensuring well quality of machine.

The curing agent system of GT02 high-efficiency sealant spreading machine adopts double way filtration system, which prevents the sealant from contacting air and occurring solidification. The sealant flow rate stability is ensured and mixing effect improved. The system is also equipped with a pipe overload protection device, providing more safety guard for operation.

The high pressure valve of material pump, curing agent pump and proportional pump is made of special leakage-free alloy by grinding. The proportional pump is installed with an adjustable proportioning mechanism; the nearly fastidious proportioning requirements of the bicomponent sealant are fulfilled, as well as those of curtain wall glass and insulating glass.

The internationally stationary reciprocating mixer is used in this machine, with the specially designed needle valve, a much better mixing result is achieved; The special material is used to make the dispensing nozzle, the production of insulating glass is more convenient, simple and elegant. The operation of the imported sealant gun with a reliable sealing is much easy.
