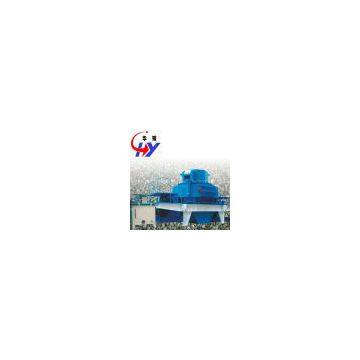

Vertical Shaft Impact Breaker PCL

Vertical shaft impact Breaker PCL
1. With alloy blade in hammer, extend the useful life
2. Lubricant system, solve the rock problem of main shaft
3. With the feed channel, organizable, adjustable
4. Automatic-lift cover, easy maintenance
5. Spring set for motor base, working more steady
Working characteristics
1. Simple structure, low cost
2. High efficiency & energy saving, high crushing efficiency
3. Has thinning &milling functions
4. Can crush middle&special hardness materials
5. The end products with cube shape
6. Easy for operation, maintenance and installation
Brief introduction
PCL Vertical shaft impact crusher is designed and manufactured with optimization by introducing advanced technology from American Barman company with international advanced level equipments of pieces crushing. It is operated stably and reliably, easy to maintain, and has high efficiency for breaking. The finished product is in cubic shape, with lower content of needle-like particles, especially suitable for plastic of stone material and for production of sand with high ratio.
Main use
PCL Vertical shaft impact Crusher also know as sand making machine is applied widely for the powder process of mineral product including metal and non-metal ore, fireproof material, bauxite, diamond dust, glass raw materials, architectural materials, artificial sand and all of metal ore materials, especially comparing with other types of crushing it has advantages for the more and more hand.

Model	Max.feed size (mm)	Electric motor power(kw)	Rotate speed of impeller (r/min)	Capacity(t/h)	Weight (t)	Overall dimension (mm)
PCL-900	40	110-180	1000*1450	55-120	10	4000*1900*2620
PCL-1250	60	220-360	950*1200	100-200	16.5	5000*2600*3100
PCL-1350	60	320-440	800*1200	160-360	17.5	5300*2900*3200
