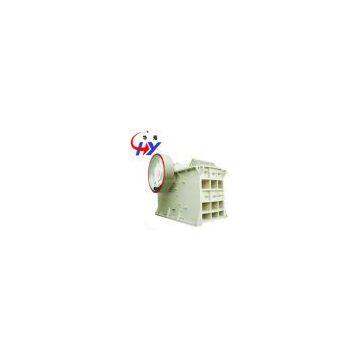

Help CenterJaw Crusher PE Series
Related Products
1. Short toggle
2. Low hanging
3. Big swing angle
4. Long useful life
5. Easy maintenance
Brief introduction
The jaw crusher has a feature of big crushing ratio, uniform finished product size, simple structure, reliable operation, easy maintenance, low operation cost. It is widely used in mining, metallurgy, construction material, highway. Railway, water conservancy and chemical industries for crushing various materials with compression strength less than 350Mpa. It is preferred equipment for the complete set of product line as the first step crusher.
|
Model |
Size of feed operating (mm*mm) |
Max. Feed size (mm) |
Capacity (t/h) |
eccentric shaft rotate speed (r/min) |
Electric motor power (kw) |
Adjustable range of discharge opening (mm) |
Weight |
|
PE-250*400 |
250*400 |
210 |
5-20 |
300 |
158 |
20-60 |
2.8 |
|
PE-400*600 |
400*600 |
340 |
16-65 |
275 |
30 |
40-100 |
6.5 |
|
PE-500*750 |
500*750 |
425 |
45-100 |
275 |
55 |
50-100 |
10.1 |
|
PE-600*900 |
600*900 |
500 |
50-120 |
250 |
55-75 |
65-160 |
15.5 |
|
PE-750*1060 |
750*1060 |
630 |
52-180 |
250 |
110 |
80-140 |
28 |
|
PE-800*1060 |
800*1060 |
650 |
85-143 |
250 |
110 |
100-200 |
30 |
|
PE-870*1060 |
870*1060 |
670 |
181-210 |
250 |
110 |
200-260 |
30.5 |
|
PE-900*1200 |
900*1200 |
750 |
140-260 |
200 |
110 |
95-165 |
50 |
|
PE-1000*1200 |
1000*1200 |
850 |
160-300 |
200 |
110 |
195-265 |
51 |
|
PE-1200*1500 |
1200*1500 |
1020 |
300-600 |
180 |
160 |
150-300 |
100.9 |
|
PE-250*750 |
250*750 |
210 |
8-22 |
330 |
22 |
25-60 |
4.9 |
|
PE-250*1000 |
250*1000 |
210 |
16-52 |
330 |
30-37 |
25-60 |
6.5 |
|
PE-250*1200 |
250*1200 |
210 |
20-60 |
330 |
37 |
25-60 |
7.7 |
|
PE-300*1300 |
300*1300 |
250 |
20-90 |
330 |
55 |
20-90 |
11 |
