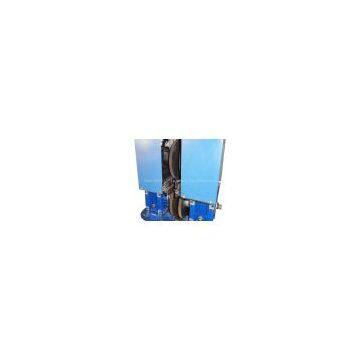

Help CenterJinan INGRAT Thermal Break Assembly Machine With Strip FeedingCTJ-CNC
Related Products
-
Rolling Machine for Thermal Break Assembly MachineGYJ-CNC-02NegotiableMOQ: 1 Set -
Jinan INGRAT Thermal Break Assembly Knurling Machine With Strip Feeding for Aluminum ProfileKTJ-01NegotiableMOQ: 1 Set
-
Jinan INGRAT Teeth Cutting Machine for Thermal Break Assembly Aluminum ProfileNegotiableMOQ: 1 Set
-
Jinan INGRAT Thermal Break Assembly Tenning Machine for Aluminum Window and DoorNegotiableMOQ: 1 Set
-
Jinan INGRAT Thermal Barrier Aluminum Rolling Machine for Window and Door GYJ-02NegotiableMOQ: 1 Set
Jinan INGRAT Machinery Com.,LTD
/en
The strip feeding machine CNC (CTJ-CNC)
(Assembly machine)
Processing method: Profiles with teeth strip insertion
Function:
1. Inserting thermal barrier strip into aluminum profile.
2. Adopts special gear wheel four-drive, uses the guiding slot improve the accuracy of feeding thermal barrier strip in slot of aluminum profile.
3. With adjustable feeding speed, it is improve the productivity greatly and operating easily and flexibly.
Working principle:
Adjust knurling knife into the notch, draw the profile by rotating the knurling knife, and make teeth on the inner cavity of the profile.
Features:
1. Every finished thermal barrier profile feature consistent shearing force at the head, middle and end.
2. With the function of electric cut, the machine can cut off the strip under the control by electric, which is applicable for the factory of high production.
3. Two axes computer control system.
4. Stepless speed regulation is available by using frequency converter.
5. Advanced three axis CNC systems.
6. EMS computer reservation systems can store different programs for different profiles’ processing.
7. Convenient operating interfaces.
Power supply: 380V/50Hz
Total power: 1.37Kw
Thermal barrier strip: 12mm-40mm
Auxiliary frame: W*L=500mm*6600mm
Overall dimension: L*W*H=1300mm*850mm*1350mm
Weight: 300Kg
