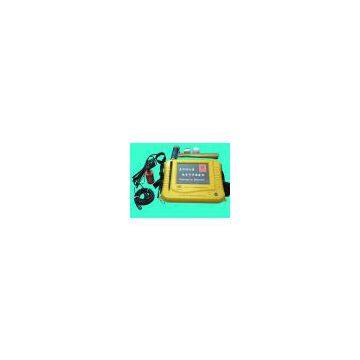

Low strain gauge

Name: Low strain gauge
Brand: Guoao
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T L/C D/P D/A
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Guoao

Place of Origin:

China

Model Number:

KON-PIT（N）

Product Description

Product Usage:

Low Strain Reflection Wave Method Detect the integrity of the concrete pile, the pile is presumed defects and their location at the pile

Based on criteria:

People's Republic of industry-standard "building Pile Detect technical specifications" JGJ106-2003;

　People's Republic of China building industry standards "Dynamic Pile Tester" JG / T 3055-1999;

People's Republic of China National Metrological Verification of order, "Pile Dynamic Measurement" JJG930-1998;

　People's Republic of industry-standard "-based low-strain dynamic pile Detect a point of order" JGJ / T 93-1995;

People's Republic of China and recommend industry standards, "Highway Engineering Pile dynamic testing technology point of order" JTG / T F81-01-2004;

People's Republic of industry-standard "railway projects Pile NDT order" TB10218-99;

functional characteristics

　Chinese full-menu, user-friendly interface design, advanced touch screen, USB interface technology, operation is simple and convenient to use

　Floating-point to enlarge the latest technology design, import high-quality sensors, pile at the end of the signal more clearly;

Small size, light weight, high-capacity built-in lithium battery, on-site detection of convenient and practical;

　Powerful analytical processing software, to facilitate treatment, can automatically generate reports;

Technical Specifications

Host screen		Color LCD
System noise voltage(mV)		≤2
Floating-point magnification		≤256
Amplifier Gain(dB)		≤64
A / D resolution(bit)		≤24
Rate (Amplitude- frequency error≤10%)	Acceleration measurement frequency rangeHz	≤9000
	Velocity measurement frequency range	≤2000 (hz)
Amplitude nonlinearity		≤10%
Time Indication Error		≤1%
Gain error		≤1dB
Sampling length		≤16k
System dynamic range		≤184
System Reference sensitivity	Acceleration sensor	Uncertainty(k=3%
	Speed Sensor:	Uncertainty(k=3)5%
Communications		Parallel port and USB port
Power supply		Outside:AC220V,DC12V
		inside:12V Li-ion rechargeable battery, more than six hours of continuous work
Temperature Adaptability		-10~+40℃
Volume(mm×mm×mm)		250×200×100
Weight kg		1.8
Power hammer, power rod configuration complete
