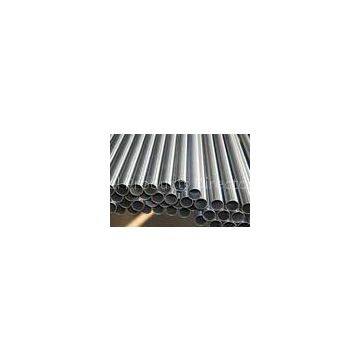

Cold Rolling Seamless Titanium Tube Heat Resistance With ASTM F67

FOB Price

Negotiable / Metric Ton

1 Metric Ton(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

HHT

Place of Origin

China

Delivery Time:20days
Certification:EN10204 3.1
Cold Rolling Seamless Titanium Tube Heat Resistance With ASTM F67 Quick Details

1)Material : Gr1 , Gr2
2)Standard: ASTM B337 B338
3) Size:OD 6-80mm, WL 0.4-4.5mm, L 15000mm(Max)

4)Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Bend test, Flaring test and so on.
3\'rd party inspection is acceptable.

Grade	Condition	Manufacturing Method	OD	Wall Thickness	Long	Standard
Gr1 Gr2	Annealed	Cold rolling Seamless	10-15MM	0.5-4.5 MM	500-4000MM	ASTM B337 ASTM B338
15-20MM	0.6-2.5 MM	500-9000MM
20-30MM	0.6-2.5 MM
30-40MM	1.0-2.5 MM
40-50MM	1.5-3.0 MM
50-60MM	1.5-3.5 MM
60-80MM	2.0-4.5 MM
Welded	16MM	0.5-1.0 MM	500-15000MM
19MM	0.5-1.25MM
25 27MM	0.5-1.5 MM	500-6000MM
31 32 33MM	0.8-2.0 MM
38MM	1.5-2.5 MM	500-4000MM
50MM	2.0-2.5 MM
63MM	2.0-2.5 MM
Welded ------- Rolling	6-10MM	0.5-1.25 MM	500-8000MM
10-15MM	0.5-1.5 MM
15-20MM	0.5-2.0MM	500-5000MM
20-25MM	0.5-2.0 MM
25-30MM	0.5-2.0MM

Applications:

Heat exchangers and condensers

Specifications:

1.titanium pipe
2.Material:Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr11,Gr12,Gr23
3.Standard:ASTM,ASME,AWS..
4.SGS.TUV

2. Chemical requirements

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18
