Concentrate Juice Processing Plant / Juice Extration Machine With Fresh Fruits Treatment Section

Shanghai Jimei Food Machinery Co.,Ltd

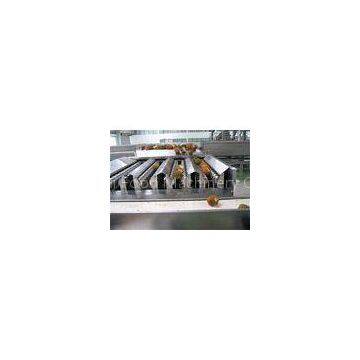

Concentrate Juice Processing Plant / Juice Extration Machine With Fresh Fruits Treatment Section thumbnail-1
Concentrate Juice Processing Plant / Juice Extration Machine With Fresh Fruits Treatment Section photo-1
US$ 100000 - 500000.00/ MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jimei
Place of Origin:
China
Model Number:
10T/H
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jimei
Place of Origin China
Model Number 10T/H
Delivery Time:60days
Certification:ISO

Automatic  Concentrate Juice Processing Plant With Fresh Fruits Treatments Section

Application

This plant is a nonstandard plant, all the machines are designed according to buyer\'s request of capacity, final products and so on.

It is used to produce paste, juice and concentrated juice such as apple, tomato, peach, pear, apricot etc..

Features

1. Adjustability

This plant a flexible one basing on our years experience in this field, there are many machines can be replaced for different fruit. E.g. in apple and pear juice production we use belt fruit presser, but in orange juice production we have to use cup fruit presser.

2. Progress

The control system using PLC or computer, the main machines we adopt the the most advaced ones in China,  on the premise

of protect the quality and nutriment of products, we simplify the whole plant to achieve high robotization, energy conservation and

labour economizing.

3. Various products output

This plant is designed to produce many kinds of products, such as pulps, paste, turbid juice, clear juice and concentrated juice, it can

collects the flavoring agent in the fruit as a single product or add into juice. The seeds and scrap will discharge automatically, as

 metrials for further production.

Equipment list of PET bottle hot filling juice beverage processing line
Flow No. Name Size Brief Specification
A hot water generating system
A-1 hot water tank V=2000L SUS304 stainless steel, PU insulation, cone cover, sealed manhole, digital show thermometer, air vent, overflow pipe, anti-eddy plate, adjustable legs, thickness of tank wall is 3mm, outer 2mm, glas tube level indicator
A-2 hot water pump Q=5T/h SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal
A-3 plate heater Q=5T/h SUS304 stainless steel, use A3 supporter,cladding with stainless steel, use steam for heating, hot water,one stage,hasp type gasket sealed
A-4 temperature control system Q=5T/h Germany Burkert steam regulating valves, UK Spirax Sarco steam reducing valve, Germany temperature sensor, pneumatic two position and three way valves are made in China
B sugar and glue melting and mixing system
B-1 high speed emulsification tank V=1000L SUS304,double layer with PU insulation, high speed mixer mounted from top to bottom, the speed is 2900rpm, CIP cleaning balls, adjustable legs,breath valve, inside with graduation
B-2 high speed mixing tank V=1000L SUS304,double layer with PU insulation, quadrate shape,high speed mixer mounted from top to bottom, the speed is 2900rpm, CIP cleaning balls, adjustable legs,breath valve, inside with graduation
B-3 CIP return pump Q=20T/h SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
B-4 milk pump Q=10T/H SUS304 stainless steel,pump lift 36M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
B-5 platform for mixing material   SUS304,stainless steel stairs and handrail, stainless steel checkered plate on surface, 3500*1000*1000mm
B-6 duplex filter Q=10T/H SUS304,tube type,100M
B-7 plate cooler Q=10T/H SUS304,A3 supporter,one stage, cool by tower water, hasp type gasket sealed
C juice concentrate blending system
C-1 vertical type screw pump Q=2T/h food sanitary grade, manual adjustable
C-2 blending tank V=6000L SUS304 stainless steel,single layer,top off- center vertical agitator 36rpm,airtight manhole,conical head,CIP spraying ball,glass tube level indicator, breather valve,supporters with adjustable feet
C-3 milk pump Q=10T/h SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
C-4 CIP return pump Q=20T/H SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
C-5 duplex filter Q=10T/H SUS304,tube type,100M
D
