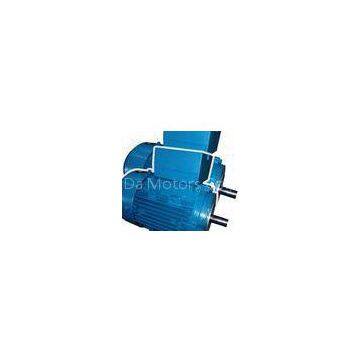

8pole 750 Rpm 0.18KW 0.24HP Three Phase Asynchronous Motor With CE / ISO9001

Ambient

Temperature range:

-20~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC / DIN

Efficiency Level

IE1

Phase

Three phase

Frame Size

H80~112 cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.18~4KW

Voltage

380V

Frequency

40-60HZ (50-60HZ constant power)

Poles

2, 4 , 6 ,8

Protection Class

IP54/IP55

Insulation

F/B

Mounting

IMB14 /IM3601

Cooling

IC411

Duty

S1

Connection

” Y\" type for 3kW and downwards, \"D\" type for 4kW and upwards

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers\' requirements

Greasing Type

Frame Size

Poles

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

2

20000 h

4,6

40000 h

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

8pole /750 rpm

kW

HP

kW

HP

kW

HP

kW

HP

YP2-80M1

0.75

1

0.55

0.75

0.37

0.5

0.18

0.24

YP2-80M2

1.1

1.5

0.75

1

0.55

0.75

0.25

0.33

YP2-90S

1.5

2

1.1

1.5

0.75

1

0.37

0.5

YP2-90L

2.2

3

1.5

2

1.1

1.5

0.55

0.75

YP2-100L
