Introduction to Hot Melt Adhesive Machine

The bonder is the ideal equipment for bonding linings to fabrics * * * in the apparel industry. The clothing materials glued by the machine are flat, firm, non-wrinkling and washable, and can also be used for shrinkage, drying and ironing of all kinds of fabrics.

Characteristics of adhesive machine:

1. The temperature shall be uniform, and the temperature difference of all parts of the adhesive machine shall not be more than ± 5 ℃ after heating.

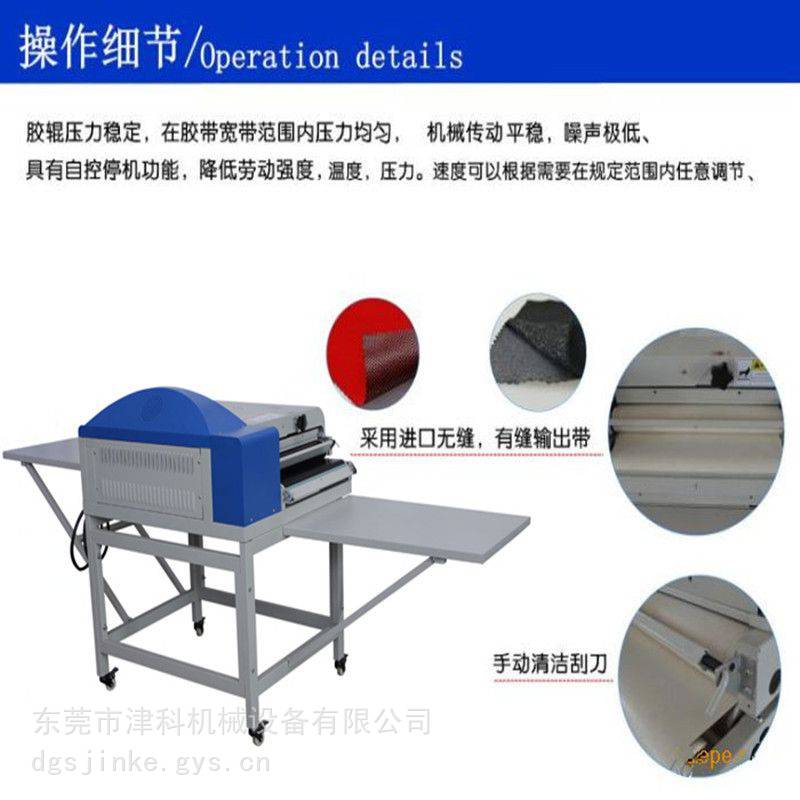

2. The pressure of rubber roller is stable and uniform within the belt width.

3. The mechanical transmission of the bonding machine is stable and the noise is extremely low.

4. With automatic shutdown function.

5. The temperature, pressure and speed of the adhesive can be adjusted within the specified range as required.

6. Easy operation, simple mechanical and electrical maintenance

Technical parameters of adhesive machine:

This series of products is a small continuous operation adhesive machine, suitable for garment front, waist, button-head trim, brim, shirt and production coat and pants and other necessary equipment that need to be bonded together

by hot melt adhesive lining. This machine adopts forced belt adjustment structure, making it more perfect and stable. The machine also has the advantages of small land occupation, convenient use and strong applicability. It is an ideal hot melt adhesive equipment for small and medium-sized garment factories.

Features: 1. Automatic deviation correction and automatic delay shutdown

2. The electrical control system is easy to operate, and the temperature control adopts LCD display

3. With multiple temperature protection devices

4. Reasonable structure and easy use

5. High power, high pressure and strong adhesion

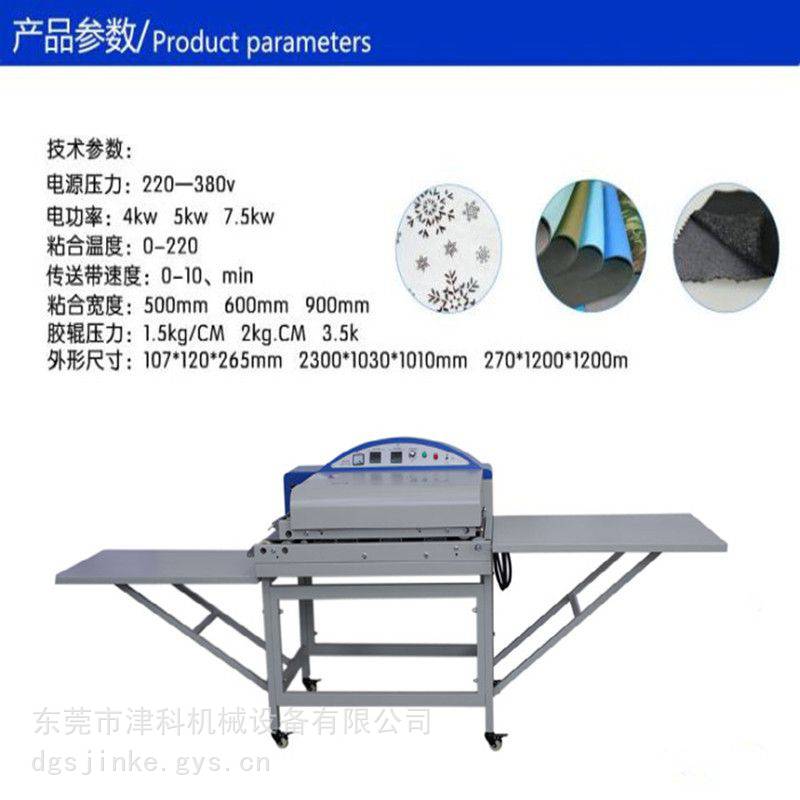

Main technical specifications and performance:

Power AC220V or AC380V ★ Adhesive pressure 1.5 kg/cm2 ★ Belt width 500 mm Length 700 mm ★ Motor power 60 W ★ Heater power 5.4 kw ★ Heater regulating temperature Room temperature ～ 200 ℃

Belt speed 8Y/min ★ Overall dimension 1850 × 1040 × 1000 ★ Weight 140Kg

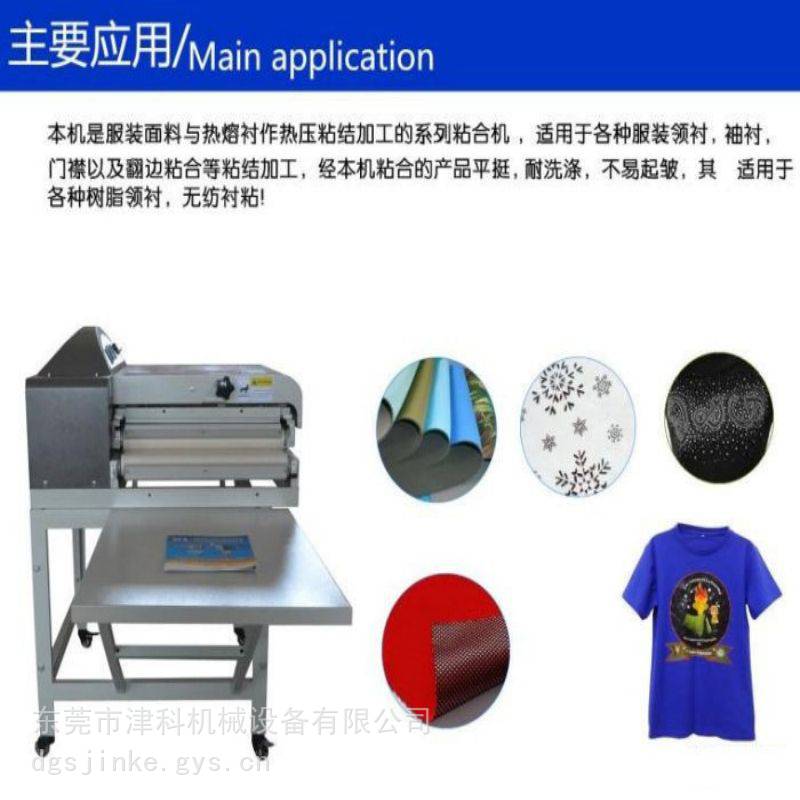

Hot melt adhesive machine is a series of adhesive machine for hot pressing and adhesive processing of garment fabrics and hot melt linings, which is applicable to adhesive processing of various garment collar linings, sleeve linings, door flaps and flanging adhesive. The products glued by the adhesive machine are flat,

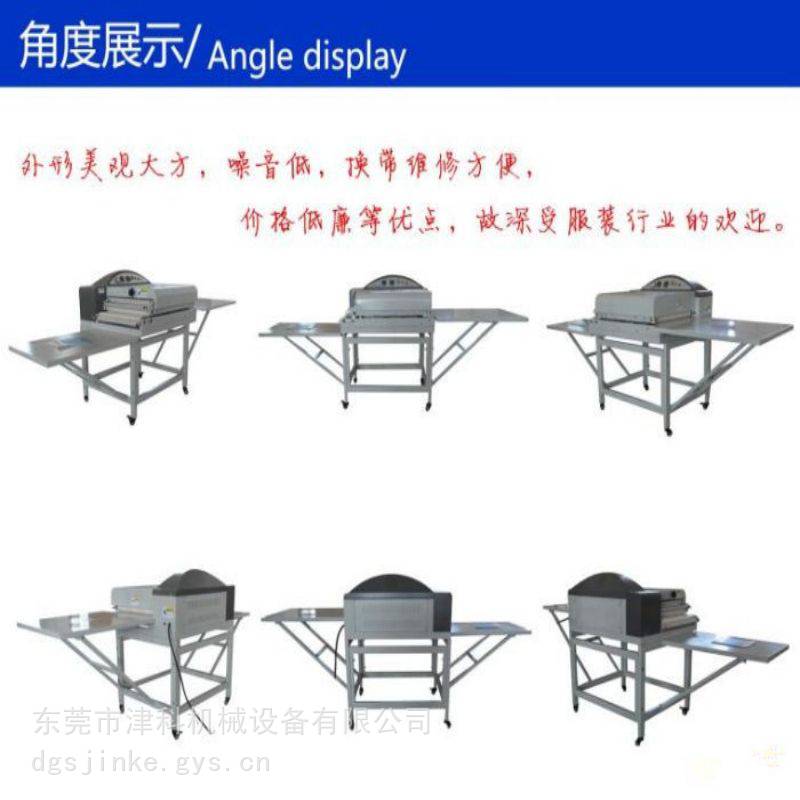

washable and not easy to wrinkle. It is used for adhesive processing of various resin collar linings and non-woven linings. It has the advantages of simple structure, beautiful appearance, low noise, convenient belt replacement and maintenance, low price, etc., so it is popular in the clothing industry.

Characteristics: forced correction without belt deviation; Large vertical pressure; Automatic temperature control shutdown; Small land occupation, convenient use and strong applicability.

The adhesive machine adopts an independent two-section large-diameter double pressure roller and double pressure pressure system, which can balance the pressure and ensure the quality of adhesive effect.

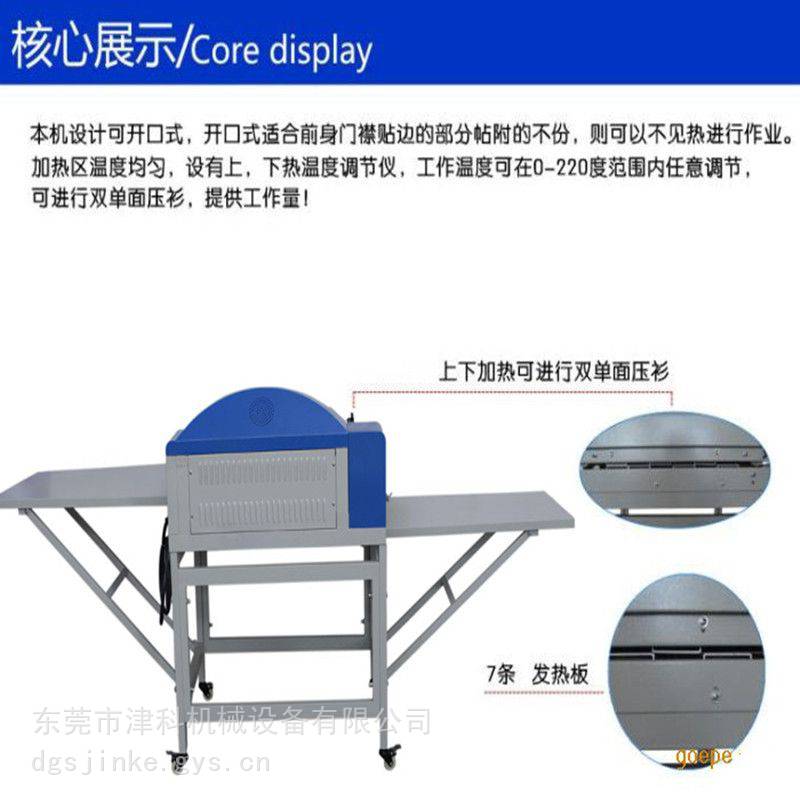

The bent arc heater is adopted, the belt and heating plate are combined more closely, the thermal efficiency is improved, and the nap and various materials difficult to be glued can be adapted.

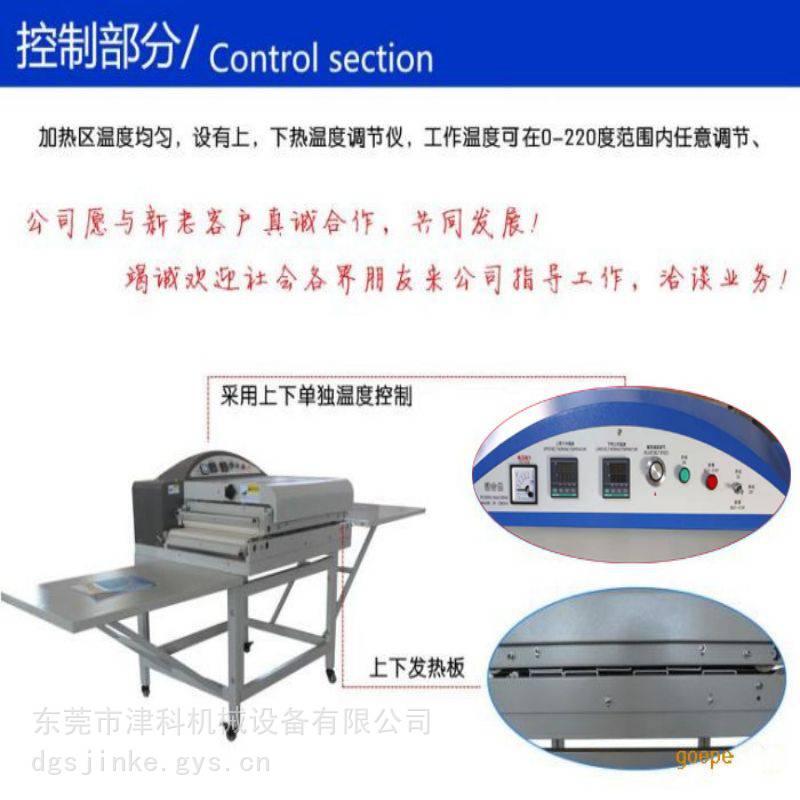

Microcomputer temperature controller with upper and lower monitoring heating zones for accurate temperature control.

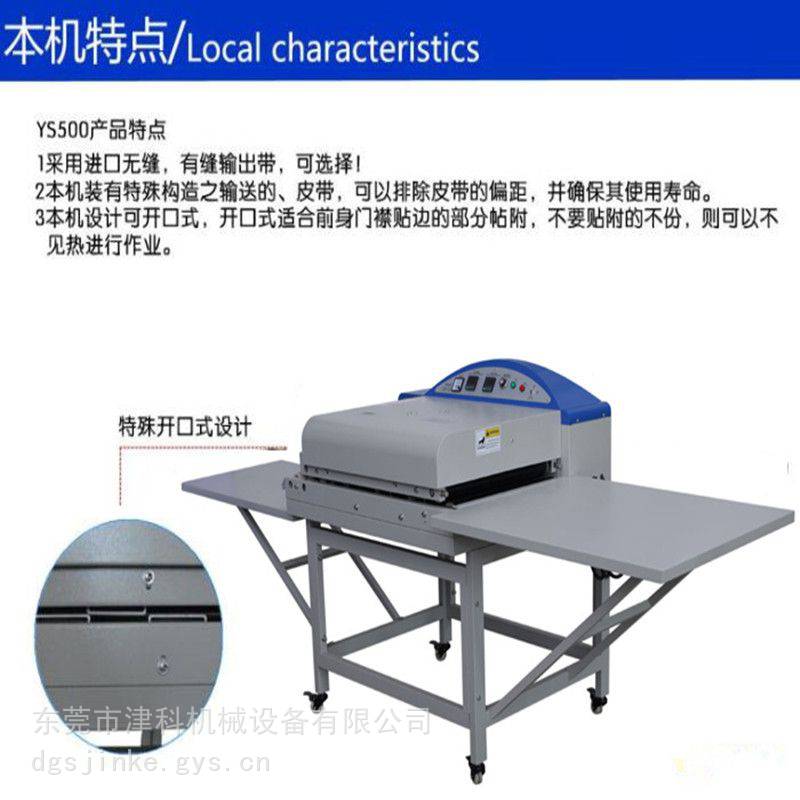

Jointless belt without interface is applicable to high-quality bonding of all kinds of cloth, and has more durability. The optimized design of the air pressure deviation adjustment system and the system without delay shutdown extend the life of the conveyor belt, reduce energy consumption,

and make it safer and more practical.

The adhesive machine can monitor the heating system, pressure system, belt correction system, etc., making the maintenance easier.

Forced draft cooling system for better cooling and sizing of materials, * * * bonding quality.
