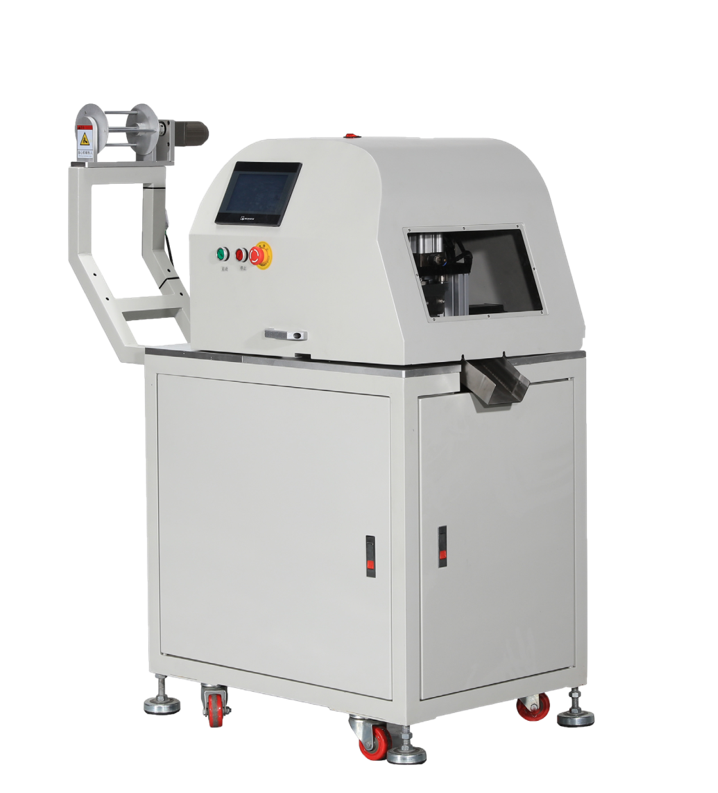

Full-automatic Ultrasonic Zipper Point Cutting

Full-automatic ultrasonic zipper point cutting

Model：JS-LLDQ-UY2

Zippers for backpacks and bags.Point cutting

1 The machine is provided with two sets of automatic and intelligent ultrasonic frequency tracing systems, not requiring manual frequency modulation

2 The fracture is smooth without burrs and damage when cutting, and there is also no fray, low noise, environmental and pollution-free; 2 zippers can be processed at the same time for zippers of width within 40mm

3 Built-in multiple distances and measurements are available, which can be changed at will, allowing easy control; built-in group storage memory, for easy and quick storage and recall, so as to save time

4 The two major functions: The machine can perform automatic pointing (marks) and cutting off at one time, which can save both time and labor with no requirements of manual line drawing, and to be fast and accurate

5 The machine can be used for purpose of strip cutting. When no dotting is required for zippers, the machine can perform the strip cutting by replacing the traditional hot cutting machine so that the machine will not be idle

6 The material and gas shortage alarm is provided, and the number of products can be preset. The machine will automatically stop after the pre-set output is achieved. It works to make man-machine interaction by touch screen, which is simple and easy in operation

7 The standard feeding length of the machine can be determined based on customer needs, with an optional range of 0-10m

8 The machine is provided with a protective cover and a safety switch, which can effectively ensure the safety of the operators

pecifications

Model: JS-LLDQ-UT2

Power supply: AC220V 10A

Air pressure: 0.5-0.6MPa

Cutting: Auto frequency tracing ultrasonic system

Power: 1800W

System: Programmable system

Drive: Servo closed loop system

Cutting angle: straight cut

Capacity: 20-50 zippers per minute for 500MM length (as an example)

Working width: Width 20-50MM, length 10-3000MM

Volume: Length 1300MM*Width 600MM*Height 1400MM

Weight: 148KG
