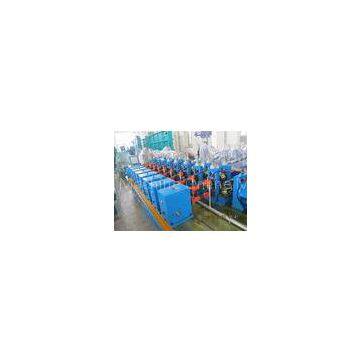

ZY45 0.7-2.0mm Thickness High Frequency Longitudinal Welded Pipe Mill Line With Sizing Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Frequency Welded Pipe Mill , Steel Pipe Rolling Machine for Carbon Steel Welded Pipe
-
Precision High Frequency Longitudinal Welded Pipe Mill Line for Custom Made Steel Pipes
-
Steel Billet Continuous Casting Machine LadleTurret With ISO Certification
-
Custom Made High Quality High Frequency Welded Pipe Making Machine
-
Water Cooling Continuous Casting Machine , R4M 1S Steel Billet CCM
-
R8M 2 Strands , Continuous Casting Machine Rigid Dummy Bar
Product Details
| Brand Name | HS | Place of Origin | China | |
| Model Number | custom made |
Product Description
Certification:ISO9001, CE
ZY45 0.7-2.0mm Thickness High Frequency Longitudinal Welded Pipe Mill Line
Precision high frequency Longitudinal welded pipe mill line
Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.
The complete line include the following device:
1. Double side Uncoiler
2. Hoop cage or Horizontal Accumulator
3. Main Machine:
3.1. Forming Machine
3.2. Roller System of Forming
3.3. Seam Guide
3.4. High Frequency Induction Welding Machine
3.5. Roller System for Moving
3.6. Burr Removing Frame (Inside and outside Burr )
3.7. Water Cooling System
3.8. Sizing Machine
3.9. Roller System of Leveling
3.10. Speed Testing Wheel
3.11. Turkish Frame
4. Auto Flying Saw Controlled by Computer
5. Run out table
6. Electric Control Equipment
7. High Frequency Welding Machine
The technical parameters of Precision High Frequency Longitudinal Welded Pipe Mill line:
|
Equipment Type |
Outside Diameter(mm) |
Thickness (mm) |
Production Rate (m/min) |
|
ZY16 |
7.6-16 |
0.3-1.0 |
0-100 |
|
ZY20 |
10-25 |
0.3-1.5 |
0-100 |
|
ZY32 |
13-38 |
0.6-1.8 |
0-100 |
|
ZY45 |
16-50 |
0.7-2.0 |
0-90 |
|
ZY50 |
20-63.5 |
0.8-3.0 |
0-80 |
|
ZY60 |
25-76 |
1.0-3.2 |
0-80 |
|
ZY76 |
32-89 |
1.2-3.75 |
0-80 |
|
ZY89 |
35-100 |
1.2-4.5 |
0-70 |
|
ZY125 |
50-130 |
2.0-5.0 |
0-60 |
|
ZY165 |
76-165 |
2.0-6.0 |
0-50 |
|
ZY219 |
89-219 |
3.0-8.0 |
0-50 |
|
ZY273 |
100-273 |
4.0-12.0 |
0-45 |
|
ZY325 |
89-325 |
3.0-12.7 |
0-40 |
|
ZY406 |
114-406 |
4.0-16.0 |
0-40 |
|
ZY508 |
219-508 |
4.0-19.1 |
0-40 |
|
ZY610 |
219-610 |
4.0-19.1 |
0-40 |
|
ZY660 |
219-660 |
4.0-22.0 |
0-40 |
Work flow of the pipe making machine:
Raw material (steel coil) → decoiling→ shearing and welding→ material accumulating → non-power leveling →forming mi
