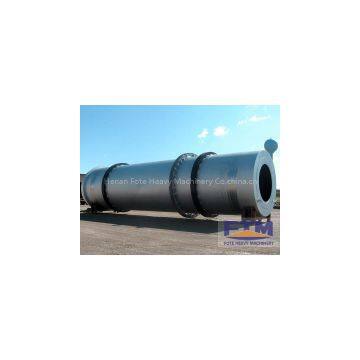

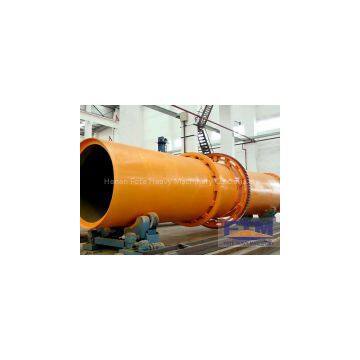

Wood Chip Dryer is a dedicated machine that can dry wood, wood chips, sawdust, wood powder, wood pellet, wood plate, etc. It is also known as wood pellet dryer and wood chips rotary dryer, which is also suitable for drying corn stalk, soybean straw, cotton stalks, wheat straw, sorghum stalk, wood, wood shavings, palm leaves, ginkgo biloba, mulberry leaves, etc.
The Structure of Wood Chip Dryer:
1. Dryer cylinder 2. The wood chip dryer of Gear 3. Roller ring 4. Garrier roller 5. Bearing boox 6. Roller carrier shaft7. Spring plate 8. Cushion block of roller ring.9. Transmission shaft 10. Pedestal of carrier 11. The wood chip dryer of Coupler 12. Transmission pedestal 13. Reducer 14. Discharge device 15. Feeding device 16. The wood chip dryer of Motor 17. Bearings 18. Cyclone 19. Fan 20. Connecting pipeline
The Working Principle of Wood Chip Dryer:
The material is the head of wood chip dryer into the slowly through the dryer drying,mesh belt speed according to the kinds of material and water content.The wind of wood chip dryerflow to the suction,porous air intake to ensure effective drying area,uniform wind velocity distribution,improve the effect of drying. To get the best drying effect and appropriate production,material,mesh belt linear velocity,distribution of the water content of the air and wind temperature must be appropriate and reasonable,organic
Features of Wood Chips Dryer:
1.Large drying intensity.
2.Short drying period.
3.Simple structure, small covering area and easy installation and repair.
4.Large handling capability and high thermal efficiency.
| Model(m) | Production capacity(T/H) | Main notor | Main reducer | Weight(T) | ||
| Power(KW) | Type | Type | Velocity ratio | |||
| Φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-I | --- | 13.5 |
| Φ1.5×12m | 3.3-4.9 | 10 | Y160L-6-B3 | JZQ500-Ⅲ-2F | --- | 18.9 |
| Φ1.5×15m | 4-6 | 18.5 | Y200L1-6 | JZQ500-Ⅲ-2F | --- | 21 |
| Φ1.8×12m | 4-6 | 18.5 | Y160L-6 | ZQ50-16Ⅱ-2 | 16.46 | 23 |
| Φ2.2×12m | 7-12 | 18.5 | Y200L7-6 | JZQ650-Ⅲ | 31.5 | 38 |
| Φ2.2×14m | 7-12 | 22 | Y200L7-6 | JZQ650-Ⅲ | 31.5 | 40 |
| Φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-Ⅲ | 31.5 | 45 |
| Φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-Ⅲ | 31.5 | 51 |
| Φ2.4×18m | 10-13 | 37 | Y250M-6 | ZL85-13-I | 27.16 | 54 |
| Φ2.4×20m | 10-14 | 37 | Y250N-6 | ZL85-13-I | 27.16 | 55 |
| Φ3×20m | 25 | 55 | Y250M-4 |
ZL100-16-I | 41.52 | 78 |
| Φ3×25m | 32-36 | 75 | YR280M-4 | ZL100-16-I | 41.52 | 105 |
Wood Chips Dryer Manufacturer:
Fote Machinery is a professional dryer machine manufacturer, and we have various kinds of dryer machines for sale, which has reasonable structure, top quality and thoughtful services. If you want to know more information about the dryer machine price, please leave us a message below or send emails to us, we will answer you as soon as possible!
