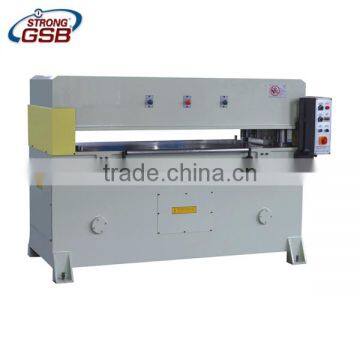

XCLP3-25 Auto-balance Precise Hydraulic Four-column Plane Cutting Machine
Usage and characteristics:
1. The machine is widely applicable for cutting of nonmetal materials in various
industries by cutting die.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which
can guarantee that the cutting force at every cutting position is same.
3. With special setting mechanism, and equipped with cutting die and cutting force
setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the cutting die
, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision
and prolongs service life of machine.
Main technical parameters:
Model | XCLP3-25 |
Maximum cutting force | 25Tons |
Distance from upper pressing board to worktable | 50-150mm |
Cutting area | 1600×550mm / 1250×550mm |
Motor power | 1.5KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Machine weight (approximate) | 1600Kg / 1500Kg |
Packing size | 2450×1200×1550mm |
REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER,FOR EXAMPLE,THE CUTTING FORCE,CUTTING AREA,FEEDING DEVICE,SPECIAL STROKE ETC.
RELATED PRODUCTS
Precision Four-Column Hydraulic Plane Cutting Machine
Model | Maximum Cutting Force |
XCLP3-300 | 300KN |
XCLP3-350 | 350KN |
XCLP3-500 | 500KN |
XCLP3-600 | 600KN |
XCLP3-800 | 800KN |
XCLP3-1000 | 1000KN |
