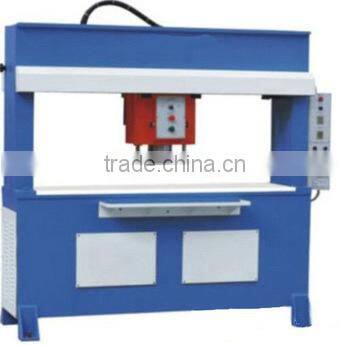

25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine

Jiangsu Southocean Industrial Co., Ltd.
25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine thumbnail-1
25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Hydraulic Cutting Machine
Application:
many
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hydraulic Cutting Machine
Application many
Place of Origin Jiangsu, China
Brand Name SUMON
Model Number SO/A Series
Rated Power 2.2KW /4.0KW
No-Load Rotational Speed many
Saw Blade Diameter many
Max. Cutting Depth many
Dimensions many



Features:
  1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
  2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
  3. The hydraulic system specially designed is featured by low noise and low oil consumption.
  4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
  5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
  6. Differential oil way is adopted to allow rapid and convenient cutting.
  7. Products of special specifications can be customized.
Main technical data:

Model

HSD/A250

HSD/A500

Maximum cutting force

250KN

500KN

Working table(mm)

1600*500

1600*500

Travel head size(mm)

500*500

550*550

Adjustable stroke (mm)

5-150

5-150

Motor power

2.2KW

4.0KW

Machine dimensions(mm)

2200*720*2000

2200*720*2000

G.W

1600kg

3000kg



We also have the following Cutting Machines series:

XCLP3 Precise Hydraulic Four-column Cutting Machine

 25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine
