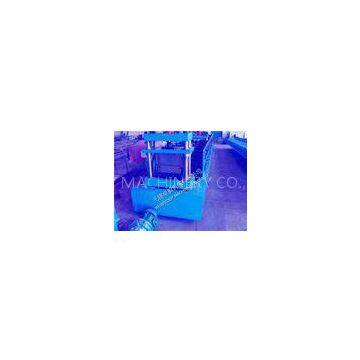

Hydraulic Cutting C Purlin Roll Forming Machine 18KW 10-12m/min

Hydraulic Cutting For C Purlin Roll Forming Machine With 18KW Main Power Driven

Description

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2．All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

4. it is very easy to install the equipment and suitable for producing in the factory.

5. the machine has features of low noise and high efficiency.

Composition of machine

Roll forming main machine......................................1 unit

5tons de-coiler...........................................................1 unit

PLC Control panel....................................................1 unit

Hydraulic station....................................................1 unit

Manual out table.....................................................2 unit

Spare box................................................................1 unit

Specifications

1. Coil width: Depend on profiles

2: Coil thickness:2-4mmQ235MPA

2. Working speed: 10-12m/min (not containing cutting time )

4. Forming roller: 15steps

5. Leveling roller:7steps (up 3 and down 4)

6.Rectifying: one step

7. Feeding & guiding: 3 sets ,six rollers

8. Material of roller: gcr15 hard Chrome Coated 58-60 degrees

9. Material of main shaft:45﹟forge steel ,Diameter of shaft: Ф80mm

10.:Main motor: 11KW

11.Hydraulic pressure: 20MPa

12.cutting power: 7.5 KW

13. Transmission: Transmission by Motor WITH chains.

14.Main dimension: 11000 x 800 x 1500mm (L x W x H)

15.Total weight: 10tons

 Our Advantage

Profile of the C and Z for reference

Technological process

De-coiling—feeding and guiding ----Levelling—cutting－roll forming—Out table

The external of machine

Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.

2: Reparis will not be performed free of change even during the guarantee period in the follow circumstances

-  damage occurs due to a natural disaster

-  malfunction occurs due to user error

-  malfunction occurs due to modifications

-  malfunction occurs due to further movement or shipment after installation

3: Air ticket, transportation cost, hotel, meals and 60$ per day shall be for purch
