Home > Manufacturing & Processing Machinery > Machinery for Garment, Shoes & Accessories > Shoe Making Machine > High Speed Glazed Tile Roll Forming Machine Production Line With 23 Forming Stations

High Speed Glazed Tile Roll Forming Machine Production Line With 23 Forming Stations

Name: High Speed Glazed Tile Roll Forming Machine Production Line With 23 Forming Stations
Brand: ZOOY
SKU: 149540312
Availability: InStock

Wuxi Zooy Machinery Co.,ltd

High Speed Glazed Tile Roll Forming Machine Production Line With 23 Forming Stations thumbnail-1

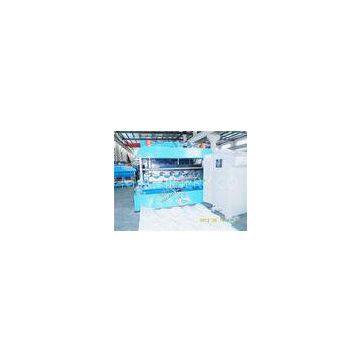

High Speed Glazed Tile Roll Forming Machine Production Line With 23 Forming Stations photo-1

US$ 30000$ - 50000$ MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

ZOOY

Place of Origin:

China

Model Number:

ZO-RT1220

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name ZOOY

Place of Origin China

Model Number ZO-RT1220

Delivery Time:60days after get 30% down payment
Certification:CE

0.3 - 0.8mm Thickness Glazed Tile Roll Forming Machine With 23 Forming Stations For Metal Roof Panel

Composition of machine

Roll forming main machine	1 unit
Roll forming main machine	1 unit
5T manual de-coiler	1 unit
Control panel	1 unit
Hydraulic station	1 unit
Manual out table	2 unit
Spare tools	1 unit

Main Specifications

Coil Material	Thickness	0.3-0.8mm
Coil width	Depend on customer’s requires
Yield Strength	G250Mpa
Material	Galvanized steel sheet
Decoiler / Uncoiler	Coil Width	Max. 1300mm
I.D	510-610mm
O.D	Max. 1300mm
Capability	Max. 5 Tons
Decoiler type	Manual / Hydraulic/Automatic
Feeding & Leveling	Pinch feeding	1 Units ( 2 Rollers )

Cutting device	Cutting motion	Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades	Cr12Mov with heat treatment HRC58-62
Length Measuring	Automatic length measuring by encoder & PLC.
Cutting Tolerance	1.5mm(per 3m)
Roll Forming Machine	Forming Stations	23 Stations

Rectifying	1 unit
Roller material	GCr15 steel, heat treatment
Diameter of shaft	80mm
Shaft material	High grade 45# steel
Drive type	Chains
Forming speed	15m/min
Main power	7.5KW
Servo motor	1 Units
Driven System	Driven by Motor	Transmission by chains
Electrical control	PLC	PANASONIC Brand or Custom-made
Inverter	YASKAWA Brand or Custom-made
Touch screen	MCGS Brand or Custom-made
Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic power	7.5KW
Runout Table	Table type	Simple non-power type
Function	To support the finished panels
TOTAL WEIGHT		APRRO 8 TONS
