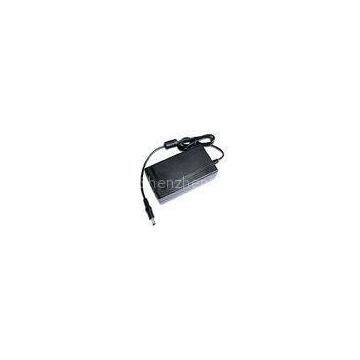

IP22 Medical power adaptor , AC-DC Power Adapter with CE ROHS approval

1. Summary This adaptor is for medical use with input power ranging at 90-264Vac,single current output 24Vdc/2.5A, and peak current 6A. It provides overcurrent protection, short circuit protection, overvoltage protection and overheat protection.

2. Product’s Key Features

Model	Input Voltage Range	Rated Output Voltage	Output Current Range	Ripple(Peak) (Rated Load,bandwidth Limitation 20MHz)
MDA60-220S24	90—264Vac	24Vdc	0—2.5A	≤150mV

3. Adoption Standards and Guidance

GB/T 2423.1—2008 Environmental Testing for Electrical and Electronic Products – Part 2: Test Methods/Test A: Low Temperature GB/T 2423.2—2008 Environmental Testing for Electrical and Electronics Products – Part 2: Test Methods/Test B: High Temperature GB/T 2423.3—2006 Basic Environmental Testing procedures for Electric and Electronic Products -- Test Ca: Damp Heat, Steady State GB/T 2423.4—2008 Basic Environmental Testing procedures for Electric and Electronic Products -- Test Db: Damp Heat, Cyclical GB/T 2423.5—2008 Environmental Testing for Electrical and Electronic Products – Part 2: Test Methods/Test Ea and Guidance: Shock GB/T 2423.6—1995 Environmental Testing for Electrical and Electronic Products – Part 2: Test Methods/Test Ea and Guidance:Collision GB/T 2423.8—2008 Environmental Testing for Electrical and Electronic Products – Part 2: Test Methods/Test Ed:Free Fall GB/T 2423.10—2008 Environmental Testing for Electrical and Electronic Products – Part 2: Test Methods/Test Fc and Guidance:Vibration (Sine) GB/T 14714.1—2008 Micro-computer Systems and Equipment General Specification of Switching Power Supply GB/T 17625.1—2012 Limits for harmonic current of low voltage electrical and electronic equipment. GB/T 17625.2-2007 Electromagnetic compatibility limits on voltage fluctuations and flicker created by devices with rated current less than 16A under low-voltage power supply systems. GB/T 17626.1-2006 Electromagnetic compatibility testing and measurement techniques overview of immunity test. GB/T 17626.11-2011 Electromagnetic compatibility - Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity test GB/T 17626.2-2006 Electromagnetic compatibility - Testing and measurement techniques - Electrostatic discharge immunity test GB/T 17626.3-2006 Electromagnetic compatibility - Testing and measurement techniques - RF electromagnetic field immunity test GB/T 17626.4-2008 Electromagnetic compatibility - Testing and measurement techniques - Electrical fast transient/burst immunity test GB/T 17626.5-2008 Electromagnetic compatibility - Testing and measurement techniques - Surge (impact) immunity test GB/T 17626.6-2008 Electromagnetic compatibility - Testing and measurement techniques – Immunity test for RF induction transmission to disturbance GB/T 17626.8-2006 Electromagnetic compatibility - Testing and measurement techniques - Power frequency magnetic field immunity test GB/T 17626.9-2011 Electromagnetic compatibility - Testing and measurement techniques - Pulse magnetic field immunity test GB/T 1772-1979 Test method for determination of failure rate of electronic elements and components QJ/T 1950-1990 Static operating system technical requirements GB/T 6991-1986 Representation of reliability data for electronic components MIL-HDBK-217F Electronic equipment reliability prediction GJB/Z-299B Electronic equipment reliability prediction manual GB9706.1-2007　　 Medical electronic equipment safety

4. Environmental Conditions

Serial No.	Item	Technical Indictor	Unit	Remarks
1	Working temperature	0 — +40	℃
2	Storing temperature	-20 — +85	℃
3	Relative humidity	Working	20—90	%RH
Storing	10—95
4	Altitude	≤3000	m
5	Cooling-down method	Natural cooling

5. Power Features

1. Input Features
Serial No.	Item	Technical Requirements	Unit	Remarks
1.1	Power type	Category Ⅱ
