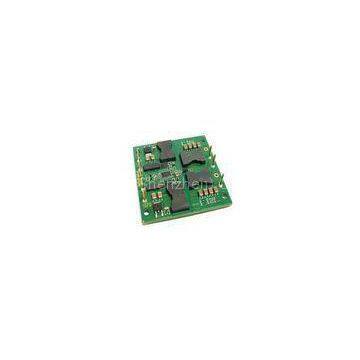

Help CenterHigh Efficiency Railway Power Supply Dc-dc Converter Module Isolation JS150-24S12-POC
Related Products
-
Isolation Capacitance Military Power Supplies Output 25 Volt ZG800-220S25-PECNegotiableMOQ: 1 Piece -
MIL-STD-704 1500V Isolated DC DC Converter 150W Output 24V YN150-24S24-PECNegotiableMOQ: 1 Piece
-
150 Watt High Efficiency DC-DC Converters 12 Volt YN150-48S12-PECNegotiableMOQ: 1 Set
-
1836 V High Input Voltage dc dc Converter 50 Watt Output 8V XD50-24S8-PECNegotiableMOQ: 1 Piece
-
50w Dc-dc Converters Output 15V With Hiccup Mode Short Circuit Protection XD50-24S15-POCNegotiableMOQ: 1 Piece
Quick Detail
Place of Origin: China
Brand Name: Enargy
Model Number: JS150-24S12-POC
Output Power: 150W
Operating Temperature Range: -20～85℃
Input Voltage Range: 18-36Vdc
Output Voltage: 12Vdc
Efficiency: 88%
Size(L*W*H): 72.1*72.1*9.1mm
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Delivery Time: Negotiation
Supply Ability: 1000Pcs/week
Key Features
· Output power: 150W
· Wide input range: 18-36Vdc
· High conversion efficiency: 88%
· Line regulation to ±0.5%
· Load regulation to ±0.5%
· Fixed operating frequency
· Isolation voltage :1500V
· Enable (ON/OFF) control
· Output over-load protection
· Hiccup mode short circuit protection
· Over-temperature protection
· Input under-voltage lock-out
· Output voltage trim: ±10%
Product Overview
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.
Product’s Introduction
The JS series is an independently regulated single output converter that uses the industry nonstandard brick package size. The very high efficiency is a result of ENARGY CORP patented topology that uses synchronous rectification and an innovative construction design to minimize heat dissipation and allow extremely high power densities. The power dissipated by the converter is so low that a heat sink is not required, which saves cost, weight, height, and application effort. All of the power and control components are mounted to the multi-layer PCB substrate with highyield surface mount technology, resulting in a more reliable product.
1.Electric CharacteristicsElectrical characteristics apply over the full operating range of input voltage, output load and base plate temperature, unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.
1.1Absolute Maximum Ratings| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | 38 | Vdc | Continuous, non-operating | ||
| 36 | Vdc | Continuous, operating | |||
| 38 | Vdc | Operating transient protection,<100mS | |||
| Isolation Voltage | 2000 | Vdc | Input to Output | ||
| Operating Temperature | -40 | 100 | ℃ | ||
| Storage Temperature | -55 | 105 | ℃ | ||
| Enable to Vin-Voltage | -2.0 | 10 | Vdc |
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage Range | 18 | 24 | 36 | Vdc | Continuous |
| Under-Voltage Lockout | 16.8 | 17.8 | Vdc | Turn-on Threshold | |
| 15.3 | 16.2 | Vdc | Turn-off Threshold | ||
| Maximum Input Current | 11 | A | Full Load;18Vdc Input | ||
| Efficiency | 88 | % |
Full load, rating input voltage, Figures 1-4 |
||
| Dissipation | 3 | W | Min. Load | ||
| Disabled Input Current | 10 | mA | Enable pin low | ||
| Recommend External Input Capacitance | 100 | µF | Typical ESR 0.1-0.2Ω |
| Parameter | Min | Typ | Max | Units | Notes |
| Output Voltage Set Point | 11.88 | 12.00 | 12.12 | Vdc | Nominal input; No load |
| Output Voltage Range | 11.76 | 12.00 | 12.24 | Vdc | |
| Output Current Range |
