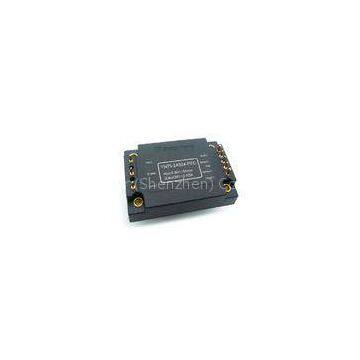

DC-DC Converters 75w Output 24V YN75-24S24-PEC

Key Features

Output power: 75W

Wide input range: 18-36Vdc

High conversion efficiency: Up to 93%

Line regulation to ±1%

Load regulation to ±1%

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-Current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±10% Vout

Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.

Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     45 Vdc Continuous, non-operating
    40 Vdc Continuous, operating
    45 Vdc Operating transient protection,<100mS
Isolation Voltage     2000 Vdc Input to Output
Operating Temperature -40   100 ℃
Storage Temperature -55   105 ℃
Enable to -Vin Voltage -0.5   10 Vdc

1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 24 36 Vdc
Under-Voltage Lockout   17.5 17.9 Vdc Recovery point
15.5 16.5   Vdc Protect point
Maximum Input Current     5 A Vin min,output full load
Efficiency   92   % Rated input;rated load
Dissipation,standby   7 12 W No Load

1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 23.76 24.00 24.24 Vdc Rated input voltage,No load
Output Voltage Range 23.52 24.00 24.48 Vdc Rated input voltage, load
Output Current Range 0   3.12 A
Line Regulation   ±0.5 ±1 %
Load Regulation   ±0.5 ±1 %
Current Limit 3.2 3.75 4.1 A Output voltage 95% of nominal
Short Circuit Current     4 A
Ripple (RMS)   180   mV Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)   240   mV

Capacitive load from

themachine

    1800 μF

1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change In Output Current   650   mV 50% to 75% to 50% Iout max; (di/dt= 0.1A/µs)
  680   mV 50% to 75% to 50% Iout max; (di/dt= 2.5A/µs)
Dynamic recovery time   300   μS
Turn-on Time   15   mS Starting from vin to vout rise to 9
