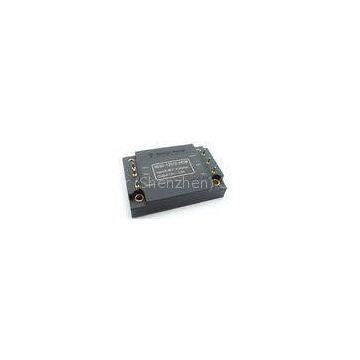

DC-DC Converters 30W Output 12V XD30-12S12-PECW

Features:

Wide input range: 9-36 V

Output power: 30W

High conversion efficiency: 90%

Line regulation to: ±1%

Load regulation to: ±1%

Input under-voltage lock-out

Output voltage trim -8～+10 % Vout

Output over-current protection

Hiccup mode short circuit protection

Output over-voltage protection

Enable (On/Off) Control

Isolation Voltage: 1500Vdc

Product Overview:

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost

effectiveness of a mature power component. High

frequency Active Clamp switching provides high power

density with low noise and high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     80 Vdc Continuous, non-operating
    40 Vdc Continuous, operating
    80 Vdc Impulse voltage,<100ms,operating
Isolation voltage     2000 Vdc Input to output
Operating Temperature     100 ℃ In view of PCB Temperature
Storage Temperature     115 ℃
Enable to -Vin Voltage     15 Vdc

1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Operating input voltage range 9 28 36 Vdc
Start voltage range 10 28 36 Vdc
Input Under-Voltage Lockout   8.5 8.9 Vdc Recovery point
7.5 8.0   Vdc Protect point
Maximum Input Current     4.2 A Vin min,Output full load
Efficiency   89   % Rated input;rated load
Dissipation,Standby   4   W No load

1.3 Output Characteristics

Parameter Min Typ Max Units Notes
Output Voltage Set point 11.88 12.00 12.12 Vdc Rated input voltage, Half load
Output Voltage Range 11.80 12.00 12.20 Vdc
Output Current Range 0   2.50 A
Voltage Regulation   ±0.2 ±1 %
Load Regulation   ±0.2 ±1 %
Current limit   3.0   A 90% of the rated output voltage
Output Short Circui Current 0 10 20 A
RMS   15   mV

Nominal input; full load;

20MHz,bandwidth.

peak-to-peak   75   mV
Capacitive load from the machine     2200 μF

1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes
Change in Output Current   350   mV

Load change50%～75%～50% Iout max,di/dt=

0.1A/μS

  400   mV

Load change50%～75%～50% Iout max,di/dt=

0.5A/μS

Dynamic recovery time
