High Power DC-DC Converters 100 Watt Output 12V YN100-48S12-PEI

Name: High Power DC-DC Converters 100 Watt Output 12V YN100-48S12-PEI
Brand: Enargy
SKU: 149532500
Availability: InStock

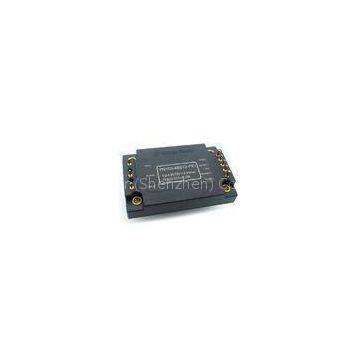

High Power DC-DC Converters 100 Watt Output 12V YN100-48S12-PEI thumbnail-1

High Power DC-DC Converters 100 Watt Output 12V YN100-48S12-PEI photo-1

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Enargy

Place of Origin:

China

Model Number:

YN100-48S12-PEI

Contact Supplier Request Quote Chat Now

Enargy Power (Shenzhen) Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Enargy

Place of Origin China

Model Number YN100-48S12-PEI

Delivery Time:1-8 Weeks

DC-DC Converters 100W Output 12V YN100-48S12-PEI

Key Features

Output power: 100W

Wide input range: 36-72Vdc

High conversion efficiency: Up to 93%

Line regulation to ±1.0%

Load regulation to ±1.0%

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-Current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim: ±8% Vout

Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter	Min	Typ	Max	Units	Notes
Input Voltage			78	Vdc	Continuous, non-operating
		75	Vdc	Continuous, operating
		78	Vdc	Operating transient protection,<100mS
Isolation Voltage			2000	Vdc	Input to Output
Operating Temperature	-20		85	℃	In view of PCB Temperature
Storage Temperature	-30		95	℃
Enable to -Vin Voltage	-0.8		10	Vdc

1.2 Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Input Voltage Range	36	48	72	Vdc
Under-Voltage Lockout		35.5	35.8	Vdc	Recovery point
32.5	34.0		Vdc	Protect point
Maximum Input Current			3.3	A	Vin min,Output full load
Efficiency		92		%	Rated input;Rated load
Dissipation,standby		7	11	W	No Load
External input		220			Proposed electrolytic capacitor in parallel across the Input. ESR0.1-0.2Ω.

1.3 Output Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output Voltage Set point	11.88	12.00	12.12	Vdc	Rated input voltage,No load
Output Voltage Range	11.76	12.00	12.24	Vdc	Rated input voltage, Load
