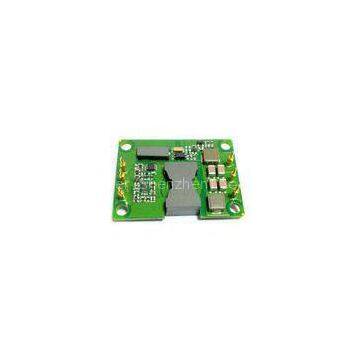

DC-DC Converters 30W Output 15V XD30-24DB15-POC
Features:
Wide input range:18-36 V
Output power: 30W
High conversion efficiency: 91%
Line regulation to: ±1%
Load regulation to: ±1%
Input under-voltage lock-out
Output over-current protection
Hiccup mode short circuit protection
Output over-voltage protection
Enable (On/Off) Control
Isolation Voltage: 1500Vdc
Product Overview:
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.
1. Electric Characteristics
1.1 Absolute Maximum Ratings
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | 45 | Vdc | Continuous, non-operating | ||
| 40 | Vdc | Continuous, operating | |||
| 45 | Vdc | Impulse voltage,<100ms,operating | |||
| Isolation voltage | 2000 | Vdc | Input to output | ||
| Operating Temperature | -40 | 100 | ℃ | In view of PCB Temperature | |
| Storage Temperature | -55 | 105 | ℃ | ||
| Enable to -Vin Voltage | -2 | 10 | Vdc |
1.2 Input Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Operating input voltage range | 18 | 24 | 36 | Vdc | |
| Input Under-Voltage Lockout | 17.5 | 17.9 | Vdc | Recovery point | |
| 16 | 16.5 | Vdc | Protect point | ||
| Maximum Input Current | 2.1 | A | Vin min,output full load | ||
| Efficiency | 90 | % | Rated input;rated load | ||
| Dissipation,Standby | 0.5 | W | No load |
1.3 Output Characteristics
| Parameter | Min | Typ | Max | Units | Notes | |
| Output Voltage Set point | +14.85 | +15.00 | +15.15 | Vdc | +Vout | Rated input voltage;Small load |
| -14.50 | -15.00 | -15.50 | Vdc | -Vout | ||
| Output Voltage Range | +14.80 | +15.20 | +15.20 | Vdc | +Vout | |
| -14.40 | -15.00 | -15.60 | Vdc | -Vout | ||
| Output Current Range | 0.2 | 1.0 | A | +Vout | ||
| 0.2 | 1.0 | A | -Vout | |||
| Voltage Regulation | ±1 | % | +Vout | |||
| ±4 | % | -Vout | ||||
| Load Regulation | ±1 | % | +Vout | |||
| ±4 | % | -Vout | ||||
|
Output over-current protection |
1.2 | A | +Vout | 90% of the rated output voltage | ||
| 1.2 | A | -Vout | ||||
| Output Short Circui Current | 0 | 5 | A | +Vout | ||
| 0 | 5 | A | -Vout | |||
| RMS | 15 | mV | +Vout |
Nominal input; full load; 20MHz,bandwidth |
||
